Description

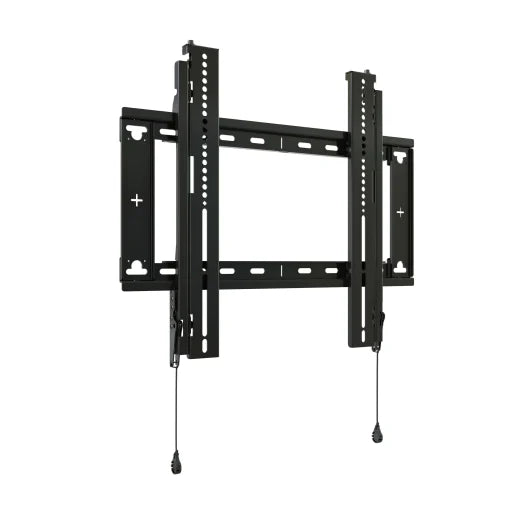

Chief RMF3 Medium Fit™ Fixed Display Wall Mount for 32"-65" TVs
Product Details
The Fit series RMF3 is a medium fixed display wall mount for 32” to 65” typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.
Features
- Low-profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 550 x 450 mm
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Specifications
| Category | Feature | Specification |
| Dimensions | Overall Dimensions | 19.19" x 22" x 1" (559 x 487 x 25 mm) |
| Height | 19.19 in (48.7 cm) | |
| Width | 22 in (55.9 cm) | |
| Depth (Standard/Minimum) | 1 in (2.5 cm) | |
| Manual Height Adjustment | 0.75 in (19.1 mm) | |
| Capacity | Weight Capacity | 125 lbs (56.7 kg) |
| Typical Screen Size | 32" - 65" (813 mm - 1651 mm) | |
| Shipping Weight | 11.9 lbs (5.4 kg) | |
| Compatibility | VESA Mounting Pattern | 100 x 100 mm up to 550 x 450 mm |
| Orientation | Landscape, Portrait | |
| Solution Type | Universal | |
| Physical Info | Adjustability | Fixed |
| Color | Black | |
| Application | Wall | |
| UPC | 841872176666 | |
| Compliance | Certifications | TUV, UL Listed |
| TAA Compliant | No |
