Description

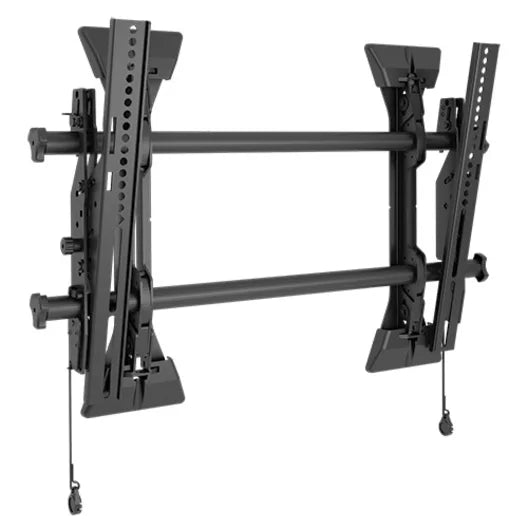

Chief MTM1U Medium Fusion® Micro-Adjustable Tilt Wall Mount For 32" - 65" TV
Product Details
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Specifications
| Category | Property | Value |
| Dimensions & Measurements | Depth | 2 in (5.1 cm) |
| Height | 17.25 in (43.8 cm) | |
| Manual Height Adjustment | 1 in (25.4 mm) | |
| Maximum Screen Thickness | 6 in (152.4 mm) | |
| Minimum Depth | 2 in (5.1 cm) | |
| Overall Dimensions | 17.25" x 25.75" x 2" (432 x 654 x 51 mm) | |
| Shipping Weight | 18.67 lbs (8.5 kg) | |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) | |
| Weight Capacity | 125 lbs (56.7 kg) | |
| Width | 25.75 in (65.4 cm) | |
| Characteristics & Features | Adjustability | Height Adjustable |
| Lateral Shift | Micro-Adjustable | |
| Application | Wall | |
| Color | Black | |
| Number of Displays | 1 | |
| Orientation | Landscape | |
| Solution Type | Universal | |
| TAA Compliant | No | |
| Tilt | +2° / -12° | |
| UPC | 841872163291 | |
| VESA Mounting Pattern | 100 x 100mm - 650 x 400mm | |
| Certifications & Warranties | Certifications | OSHPD, UL Listed |
