Description

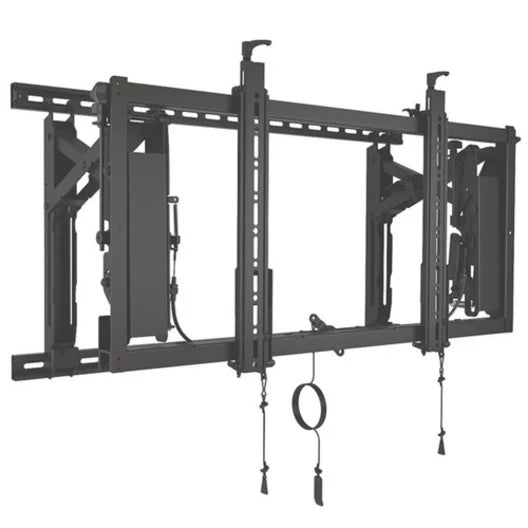

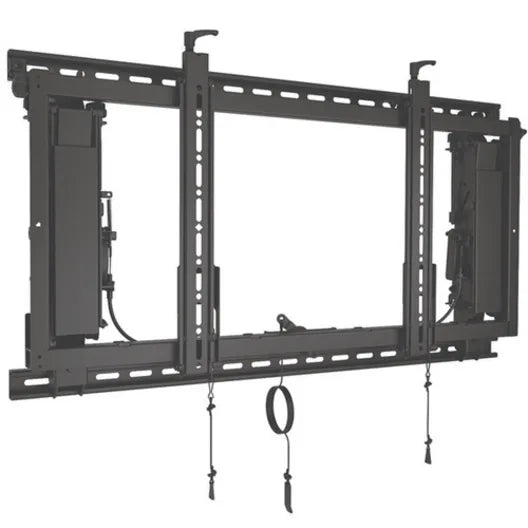

Chief LVSXU, ConnexSys™ Video Wall Landscape Mounting System without Rails
Chief's ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
| Depth | 4 in (10.2 cm) |
| Height | 21.8 in (55.4 cm) |
| Minimum Depth | 4 in (101.6 mm) |
| Overall Dimensions | 21.8" x 35.5" x 4.0" (554 x 903 x 102 mm) |
| Shipping Weight | 37 lbs (16.8 kg) |
| Typical Screen Size | 42" - 80" (1067mm - 2032mm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 35.5 in (90.2 cm) |
| Adjustability | Extension, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt |
|
| VESA Mounting Pattern | 200 x 100 - 700 x 400 mm |
| With Rails | No |
| Certifications |
|
