Description

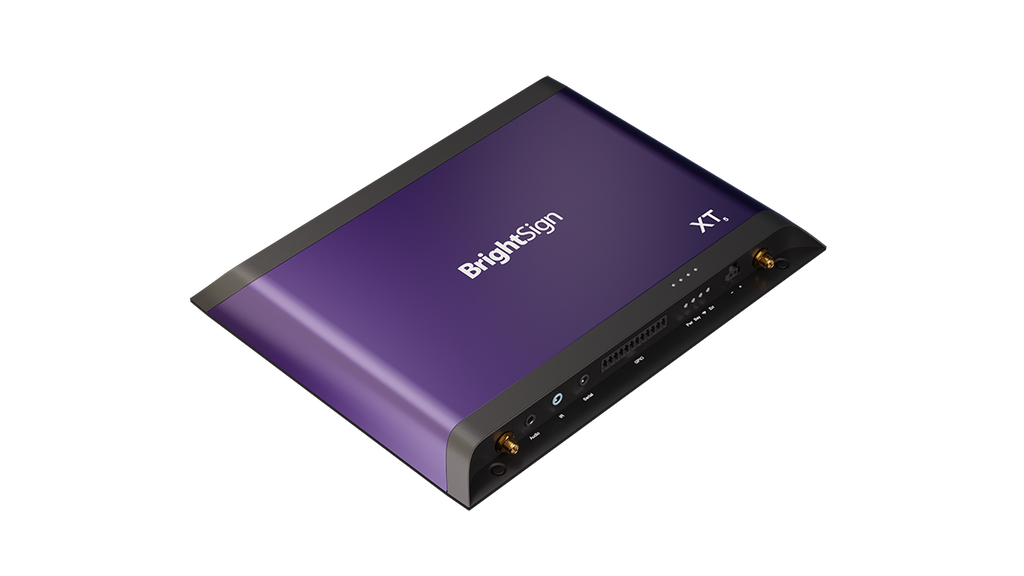

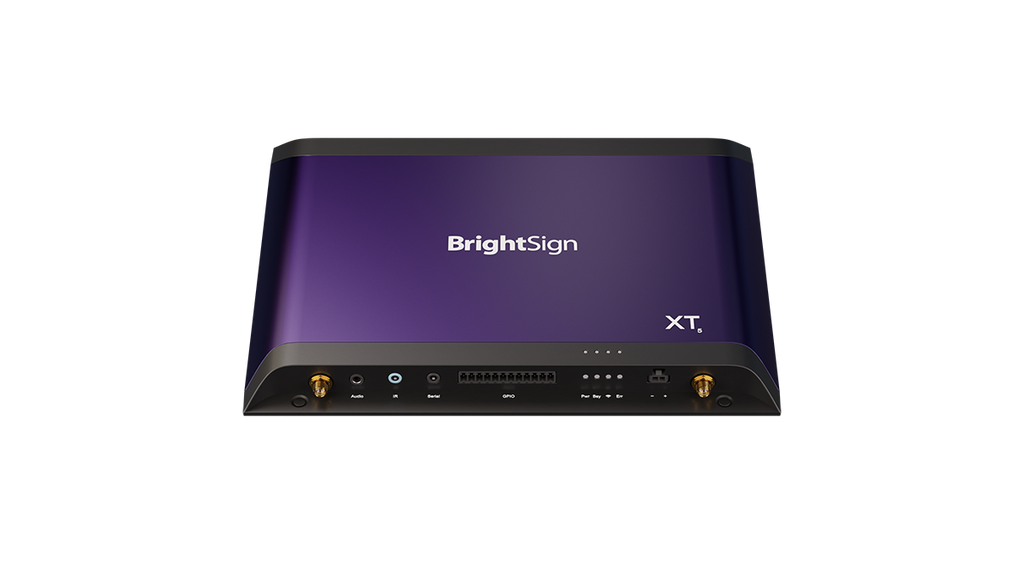

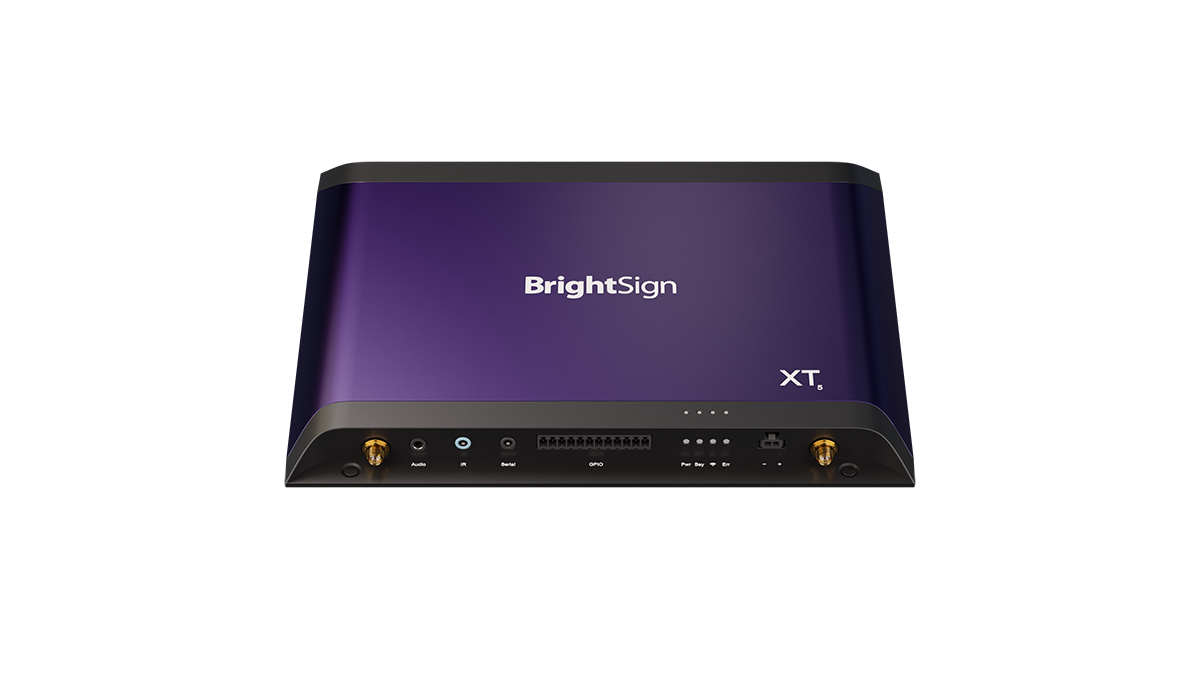

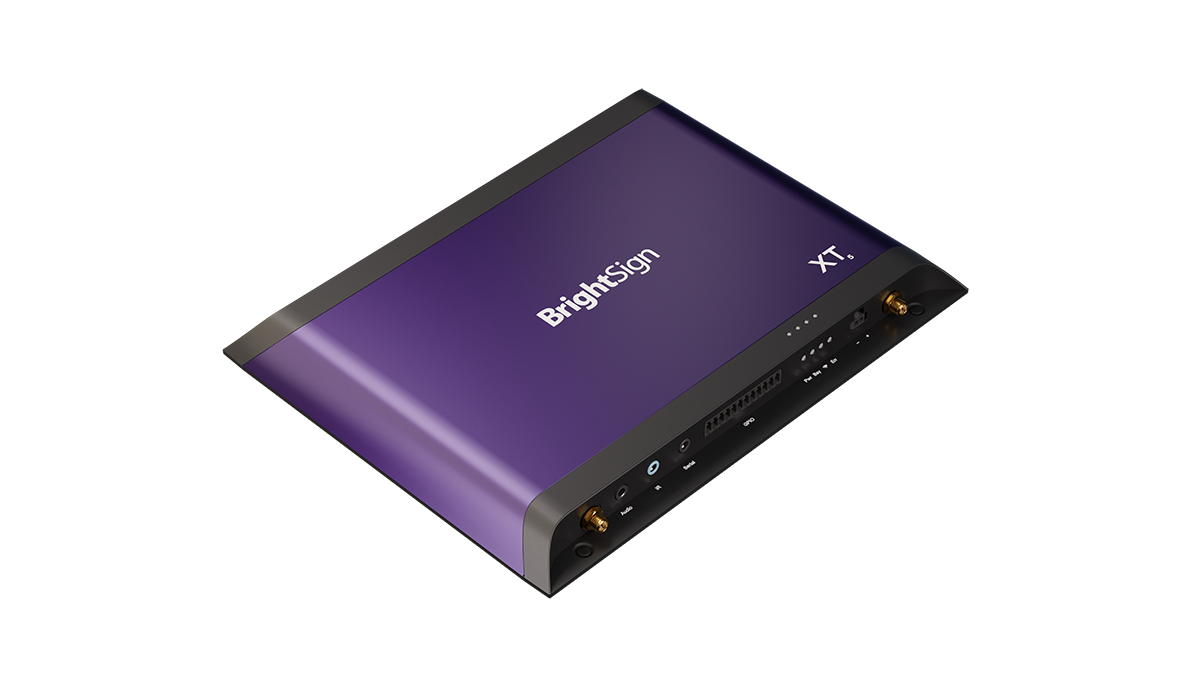

BrightSign XT5 Digital Player
Product Details
The XT5 is built for "prime performance," offering a perfect blend of motion graphics power and cutting-edge video capabilities. It is the go-to solution for dynamic dashboards, dual-screen deployments, and installations requiring live HDMI input for seamless TV and video source switching.
Features
-
Live TV Integration: The XT1145 and XT2145 include an exclusive HDMI input, allowing you to wrap live news, sports, or camera feeds within your digital signage.
-
Dual Screen Mastery: The XT2145 features dual HDMI outputs, allowing you to drive two separate screens with independent or mirrored content from a single player.
-
8K Video Support: Future-proof your content with native 8K60p video decoding and vibrant HDR10/HLG color depth.
-
Dynamic Dashboards: Specifically optimized for 3D WebGL and real-time data visualization, making it perfect for corporate dashboards or live stats.
-
PoE+ Support: Power your player and receive data through a single cable to simplify installation.
-
Extended Operating Temp: Rated to perform from -10°C to 50°C, making it suitable for more demanding environmental conditions.
Specifications
| Feature | XT245 (Standard) | XT1145 (Expanded) | XT2145 (Multiplex) |
| I/O Package | Standard | Expanded (adds USB/Serial) | Multiplex (Dual HDMI Out) |
| Video Decoding | Single 8K60p (10-bit) | Single 8K60p (10-bit) | Single 8K60p (10-bit) |
| Multi-Video | Dual 4K60p (10-bit) | Dual 4K60p (10-bit) | Dual 4K60p (10-bit) |
| HDMI Input | — | 1x HDMI 2.0 In | 1x HDMI 2.0 In |
| HDMI Output | 1x HDMI 2.0a | 1x HDMI 2.0a | 2x HDMI 2.0a |
| AI Capability | Neural Processing Unit | Neural Processing Unit | Neural Processing Unit |
| HTML5 Performance | Elite (3D WebGL) | Elite (Intense Graphics) | Dual HTML Presentations |
| HDR Support | HDR10, HLG, Rec.2020 | HDR10, HLG, Rec.2020 | HDR10, HLG, Rec.2020 |
| Ethernet | Gigabit (PoE+) | Gigabit (PoE+) | Gigabit (PoE+) |
| Warranty | 5-Year Limited* | 5-Year Limited* | 5-Year Limited* |
Physical & Environmental
-
Dimensions (W x D x H): 238.62 x 185.90 x 19.19 mm (9.39" x 7.32" x 0.76")
-
Player Weight: 0.68 kg (1.5 lbs)
-
Shipping Weight: 1.41 kg (3.1 lbs)
-
Power Supply: 12V / 3A (Locking Power Supply) or PoE+
-
Operating Temperature: -10°C to 50°C
Supported File Formats
-
Video Containers: .MP4, .MOV, .MKV, .WEBM, .TS, .MPG, .MPEG, .PS, .M2P, .MPV, .AVI
-
Video Codecs: H.265/HEVC, H.264/AVC, AV1, VP9, MPEG-1, MPEG-2, MPEG-4, MJPEG
-
Image Formats: BMP, JPEG, PNG (up to 8K resolution)
-
Audio Formats: MP2, MP3, AAC, WAV (AC3 pass-through)
*Note: The 5-year warranty program applies to Series 5 players purchased after January 1, 2025.
