Description

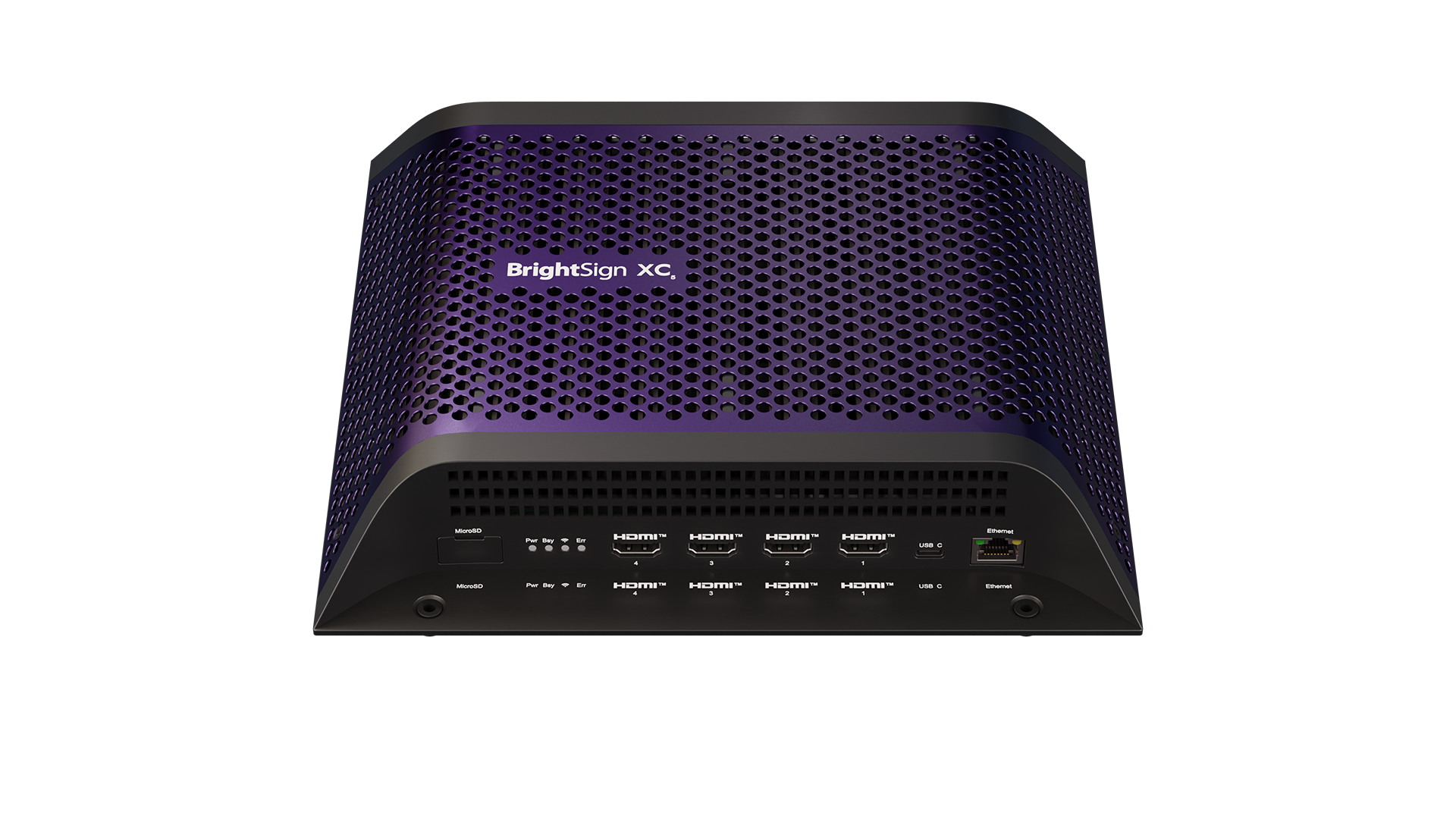

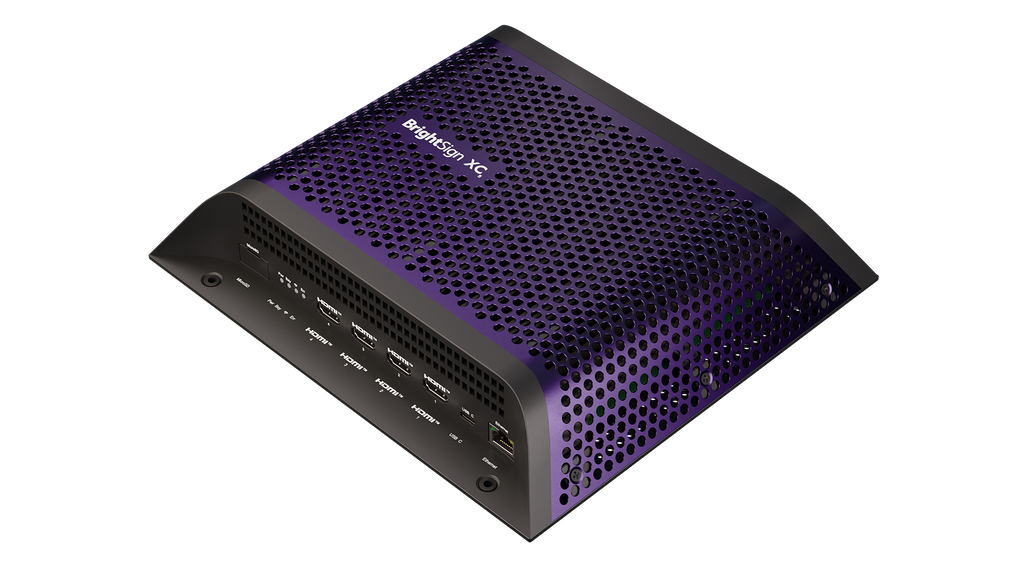

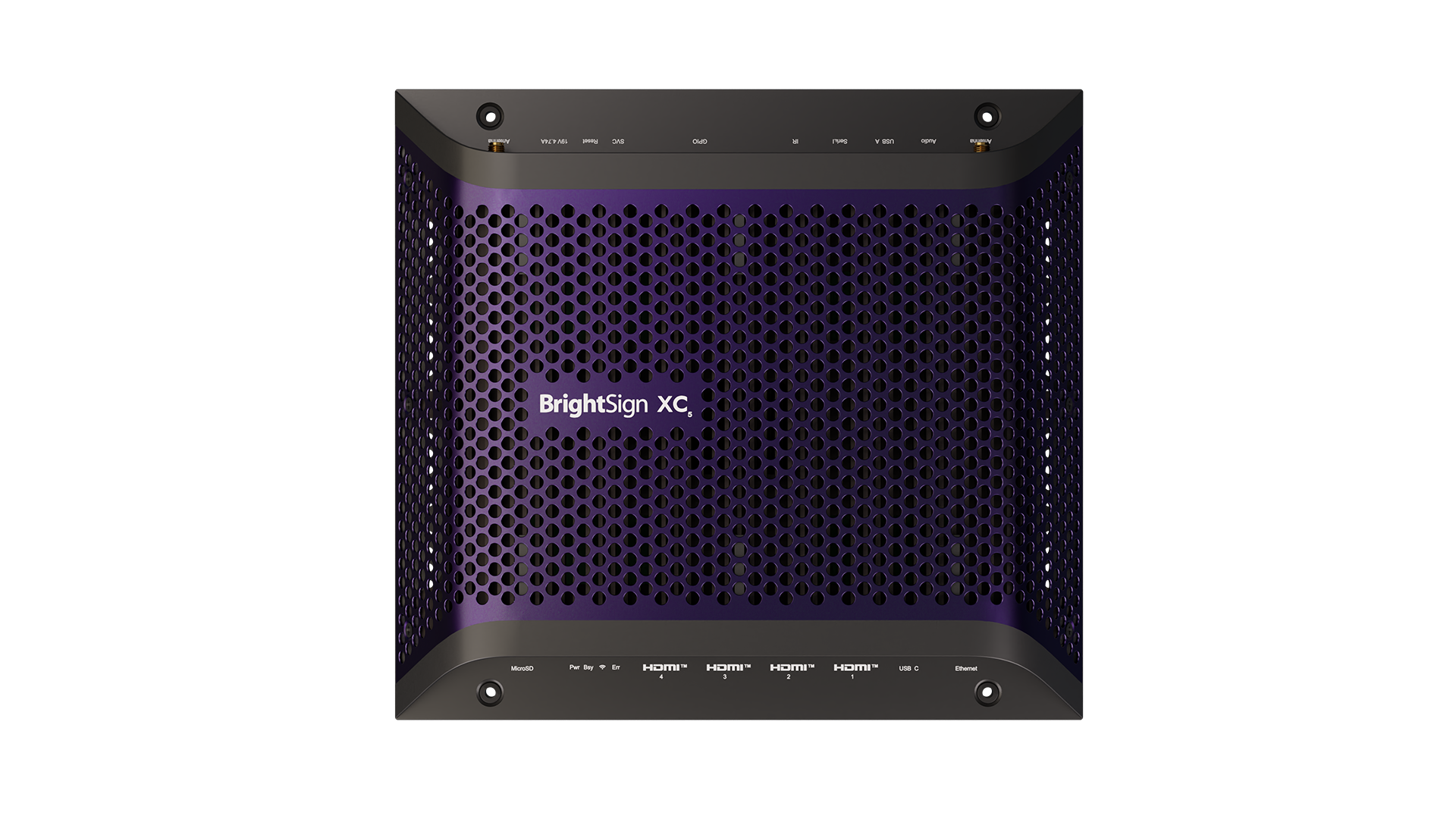

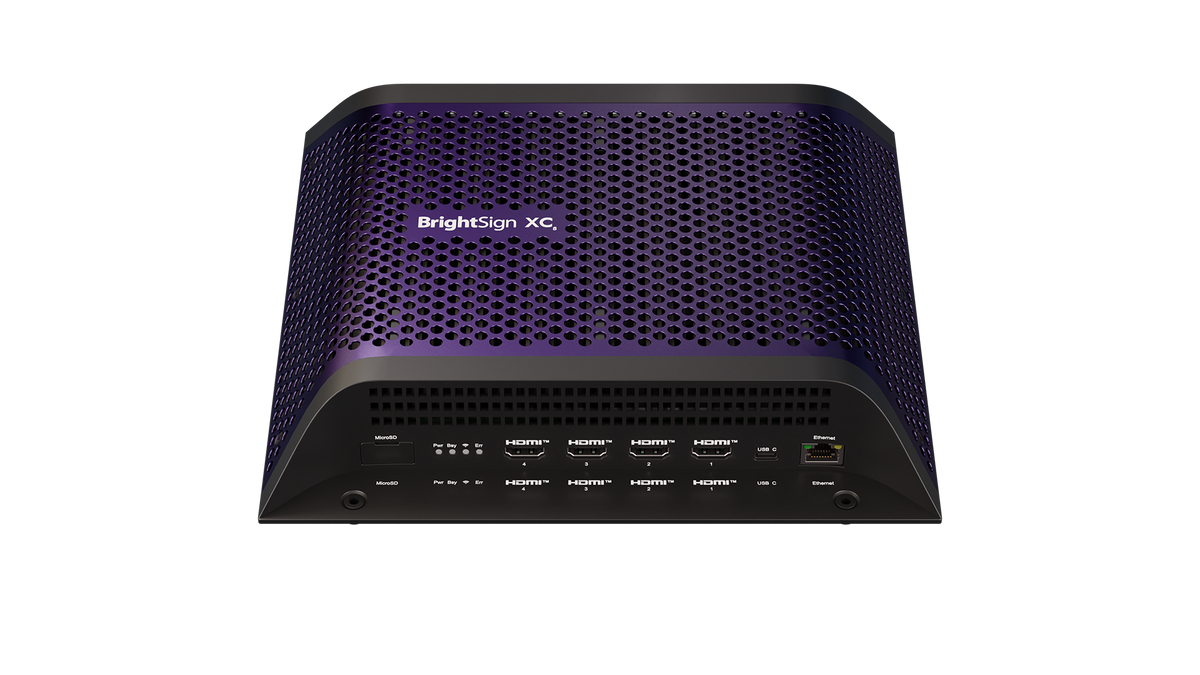

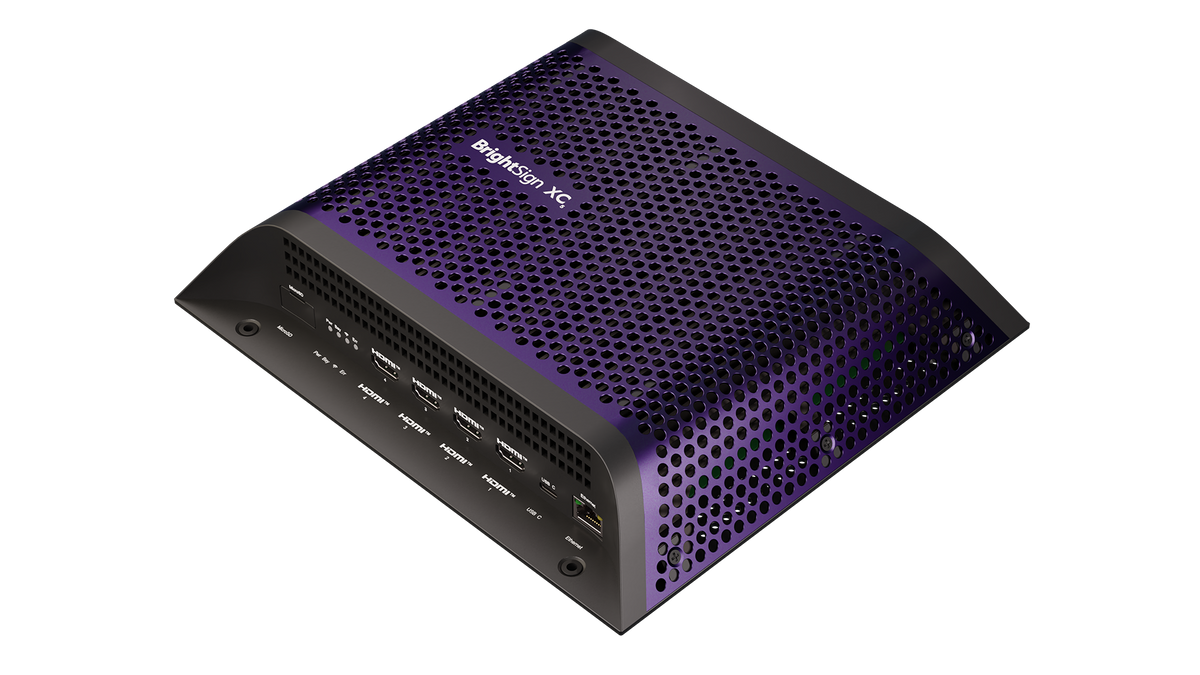

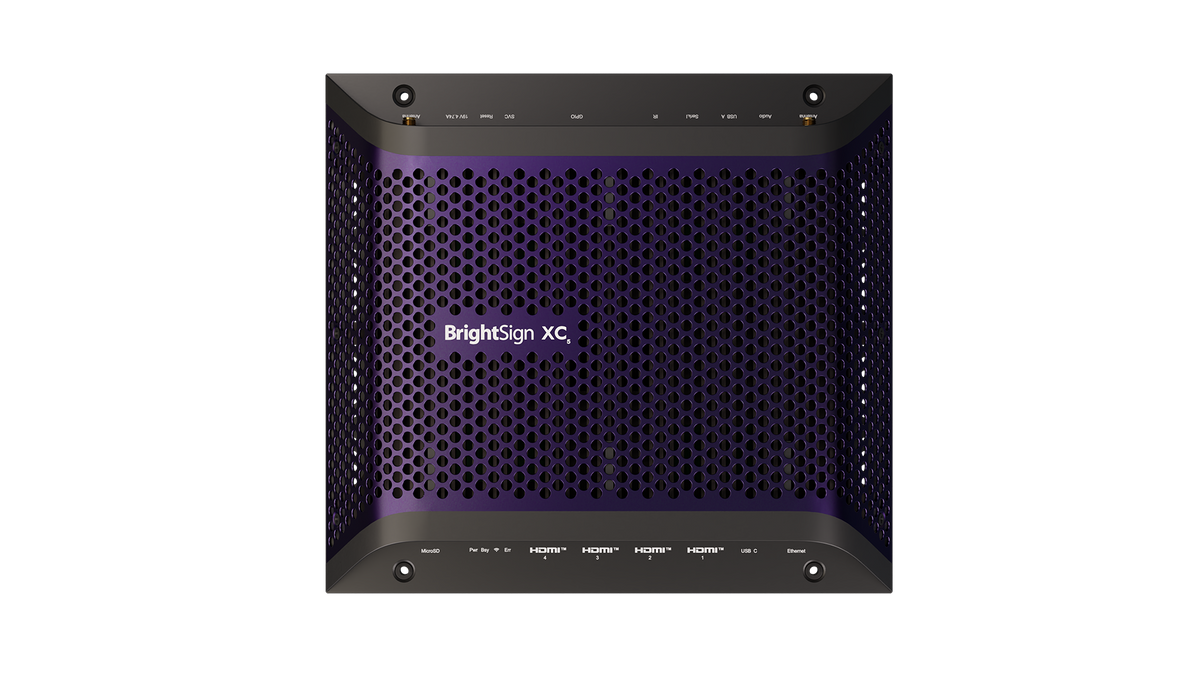

BrightSign XC5 Digital Player
Product Details
The XC5 is the ultimate PC alternative, offering high-speed 3D motion graphics and breathtaking 8K resolution. It simplifies multi-screen deployments by powering multiple displays from a single player via multiple HDMI outputs.
Features
-
Multiple HDMI Outputs: The XC4055 features four HDMI outputs, allowing you to drive a 2x2 video wall or four independent screens with a single player.
-
PC-Class HTML Performance: Delivers robust 3D motion graphics and highly responsive multi-touch gestures, outperforming traditional signage players.
-
8K Content Support: Future-proof your installations with native 8K60p video and 8K resolution graphics.
-
Streamlined Connectivity: Eliminate the need for complex video controllers or multiple players for DVLED and video wall setups.
-
BrightSignOS™: A purpose-built, secure, and energy-efficient operating system designed specifically for 24/7 digital signage.
-
Sustainability: A more reliable and energy-efficient alternative to power-hungry PC based signage systems.
Specifications
| Feature | XC2055 | XC4055 |
| Video Decoding | Single 8K60p (8-bit) | Single 8K60p (10-bit) |
| Multi-Video Support | Dual 4K60p (10-bit) | Quad 4K60p (10-bit) |
| HTML5 Performance | 8K 3D WebGL (Across 2 screens) | 2x Power (Across 4 screens) |
| HDMI Outputs | 2x HDMI Outputs | 4x HDMI Outputs |
| HDR Support | HDR10, HLG, Rec.2020 | HDR10, HLG, Rec.2020 |
| Graphics | 8K Full Res / OpenGL | 8K Full Res / OpenGL |
| 8K Video Codecs | H.265/HEVC, VP9 | H.265/HEVC, VP9 |
| Audio | MP2, MP3, AAC, WAV | MP2, MP3, AAC, WAV |
| IP Streaming | Supports 4K | Supports 4K |
| Warranty | 5-Year Limited* | 5-Year Limited* |
| Hardware | Storage | External MicroSD slot (protected by tool-less cover) |
| Real Time Clock | Yes (14-day life via supercapacitor) | |
| Indicators | Status LED, Reset, and Service Buttons | |
| Power | 12V / 1.5A (Locking Power Connector) | |
| Physical | Dimensions | 4.98" x 5.58" x 0.76" (126.6 x 141.84 x 19.41 mm) |
| Weight | 6.3 oz (0.18 kg) | |
| Mounting | Built-in Wall Mounting Brackets |
Physical & Environmental
-
Dimensions (W x D x H): 253.2 x 232.12 x 48 mm (9.97" x 9.14" x 1.89")
-
Player Weight: 1.41 kg (3.1 lbs)
-
Shipping Weight: 3 kg (6.6 lbs)
-
Power Supply: 19V / 4.7A (Locking Connector)
-
Operating Temperature: 0°C to 40°C
Supported File Formats
-
Video Containers: .MP4, .MOV, .MKV, .WEBM, .TS, .MPG, .MPEG, .PS, .M2P, .MPV, .AVI
-
Video Codecs (8K/4K/HD): H.265/HEVC, H.264/AVC, AV1, VP9, MPEG-1, MPEG-2, MPEG-4, MJPEG
-
Image Formats: BMP, JPEG, PNG (up to 8K resolution)
-
Audio Formats: MP2, MP3, AAC, WAV (AC3 pass-through)
*Note: The 5-year warranty program applies to Series 5 players purchased after January 1, 2025.
