Description

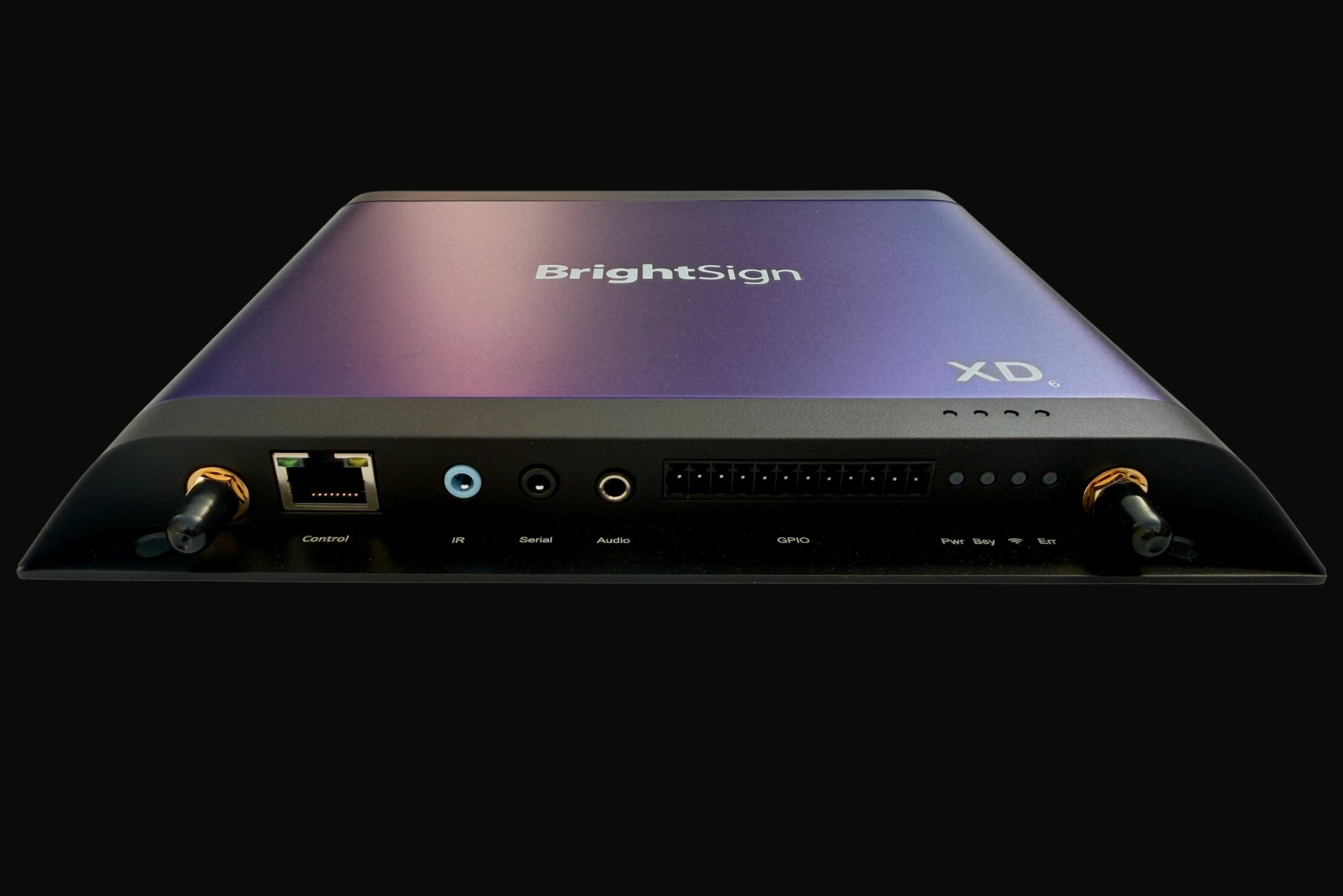

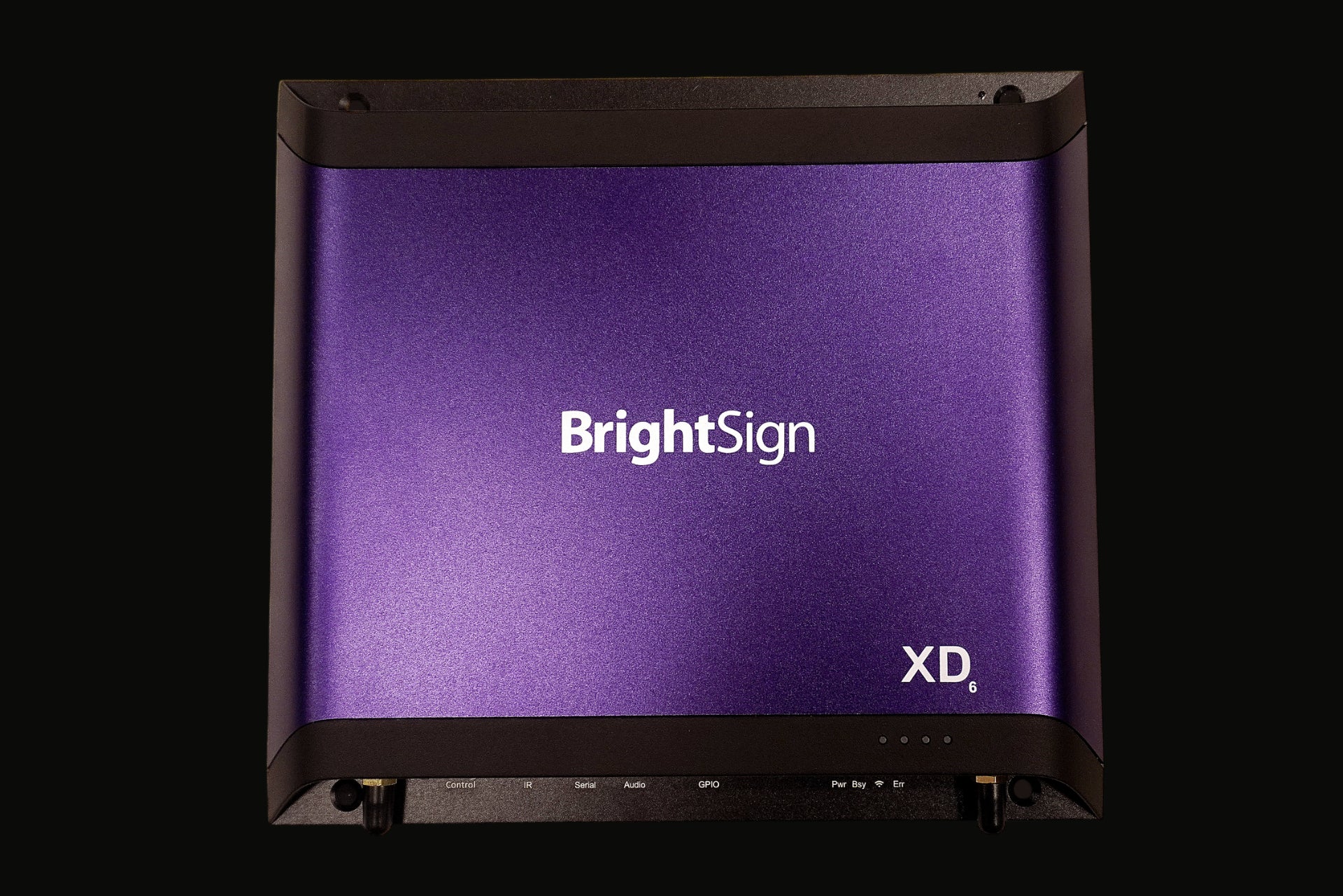

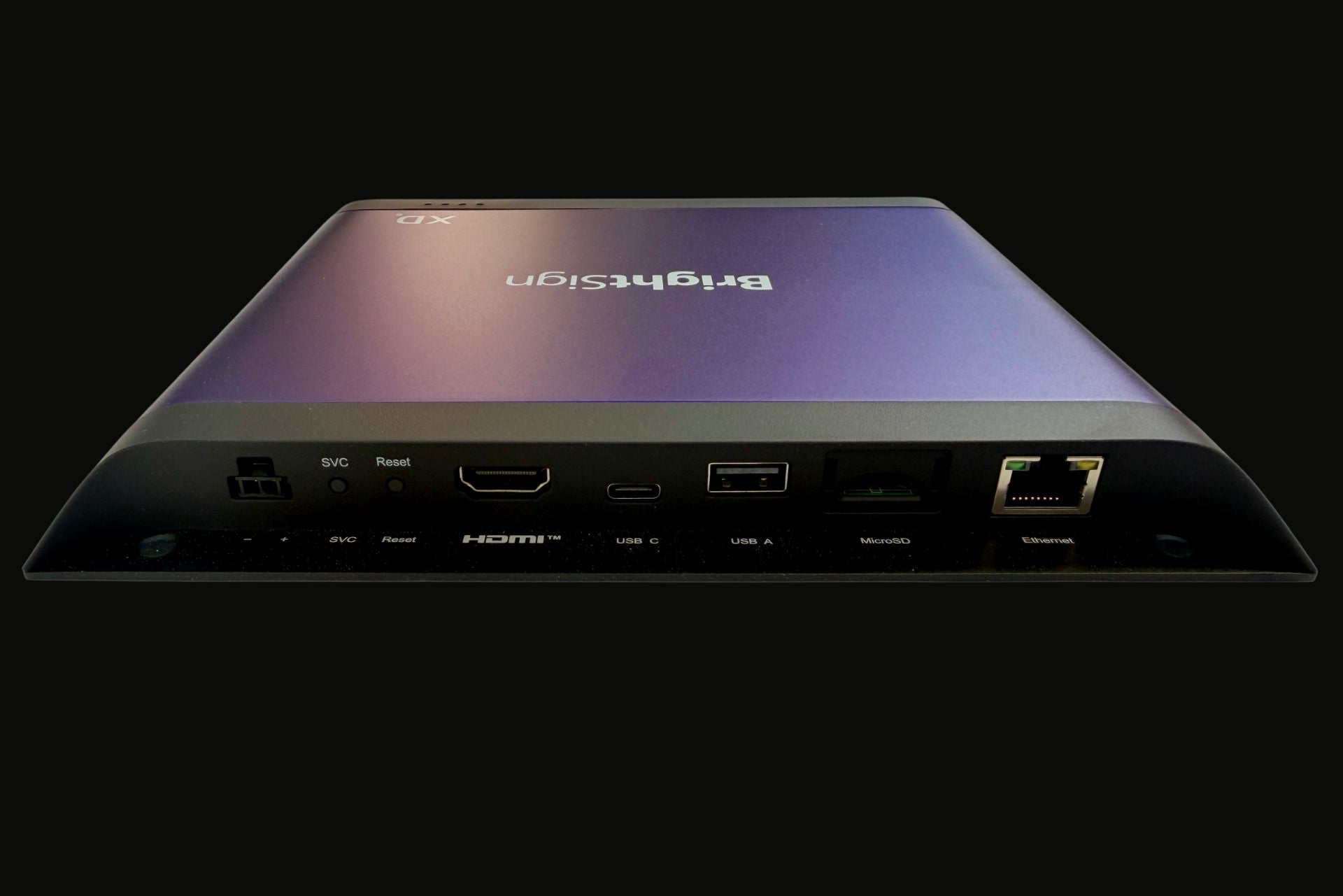

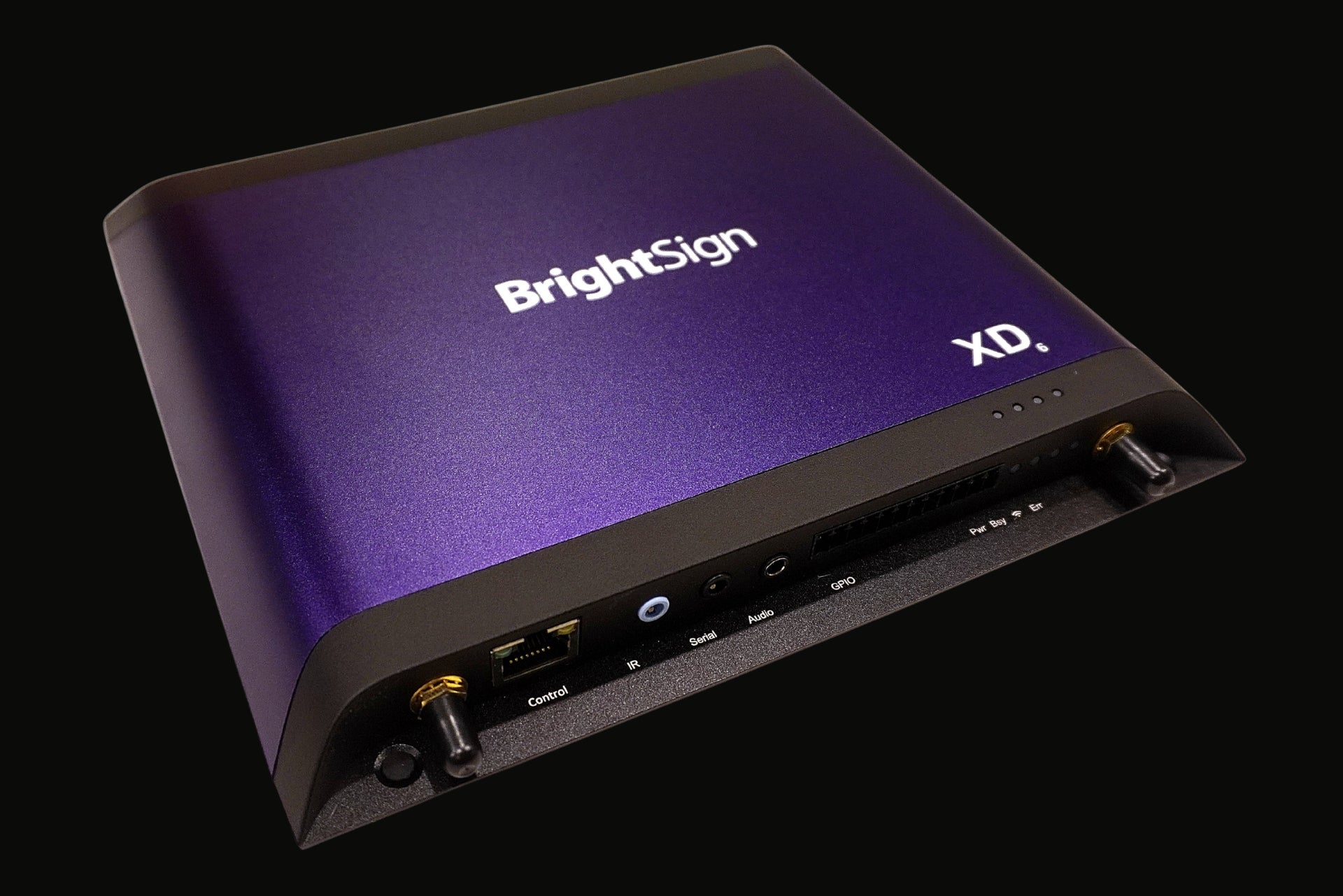

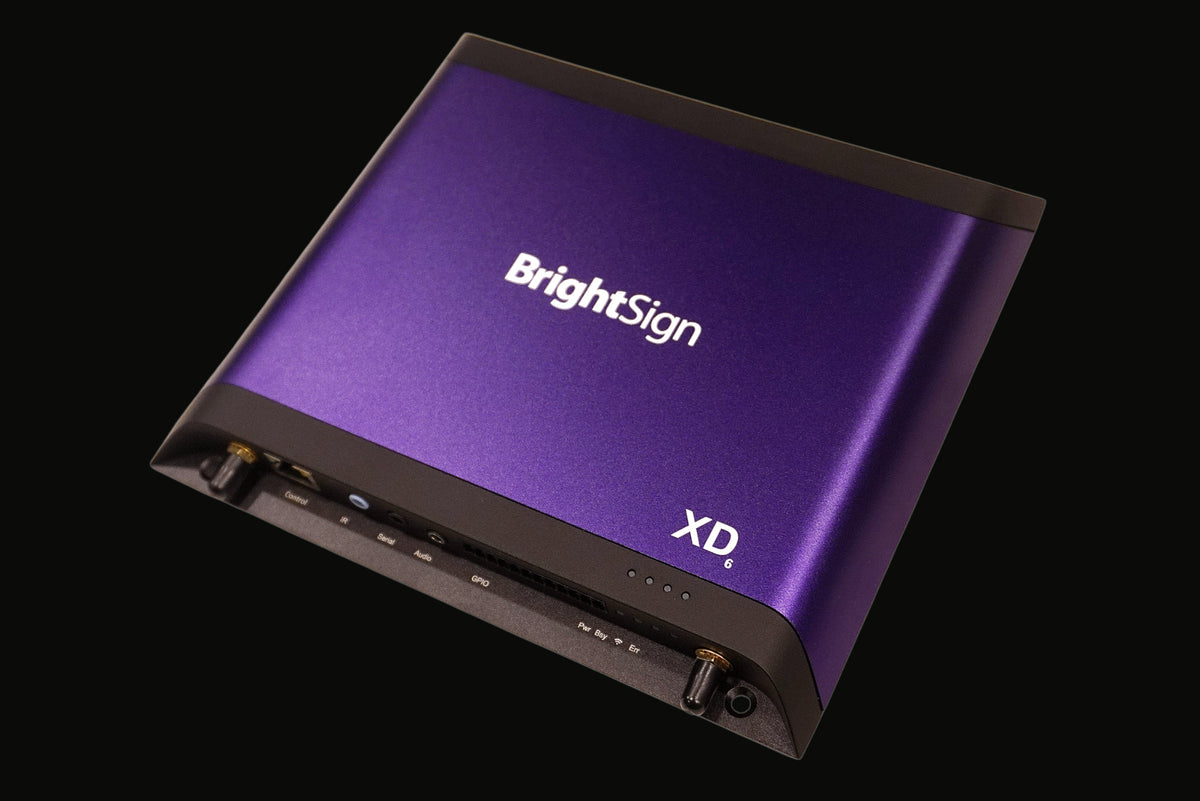

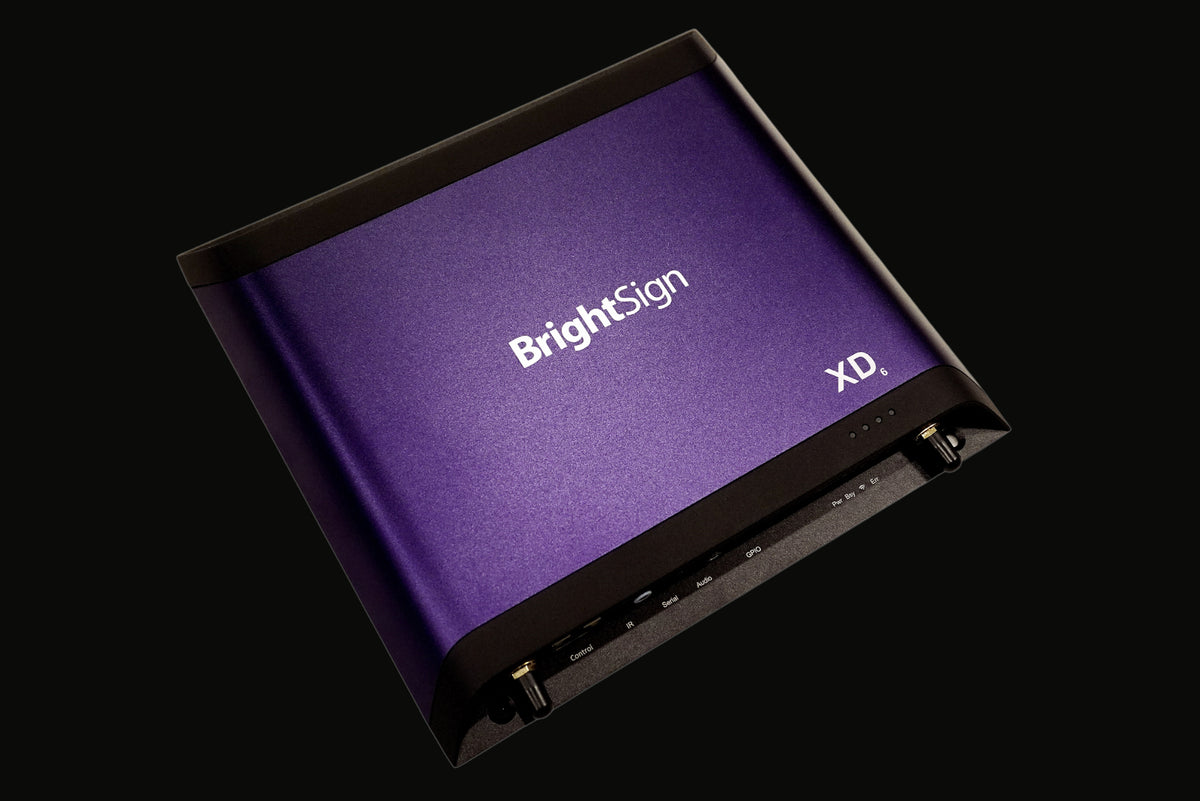

BrightSign XD6 Digital Player
Product Details
BrightSign XD6 delivers stellar 4K video performance and responsive graphics. It is ideal for on-screen displays, projected content, and complex interactive applications. Its slim design and support for Power over Ethernet (PoE+) allow for flexible deployment in any environment.
Features
-
Dual 4K Video Decoding: Seamlessly playback two 4K videos at 60fps simultaneously.
-
AI-Ready with NPU: The dedicated Neural Processing Unit allows for advanced AI tasks like audience analytics and sensor-driven interactivity without impacting video performance.
-
PoE+ Support: Power the device and provide data via a single Ethernet cable, simplifying installation and reducing cable clutter.
-
M.2 SSD Support: Expandable internal storage via an M.2 interface for high-speed, high-capacity content storage.
-
Responsive Interactive Graphics: Optimized for multi-touch HTML5 and 2D WebGL motion graphics.
-
Industrial Design: Ultra-thin profile (under 1 inch) designed for 24/7 reliability in demanding commercial environments.
Specifications
| Feature | XD236 (Standard) | XD1036 (Expanded) |
| I/O Package | Standard | Expanded |
| AI Capability | Integrated Neural Processing Unit (NPU) | Integrated Neural Processing Unit (NPU) |
| Video Decoding | Dual 10-bit 4K @ 60p | Dual 10-bit 4K @ 60p |
| Full HD Decoding | Dual 10-bit 1080p @ 60p | Dual 10-bit 1080p @ 60p |
| HTML5 Performance | Smooth full-screen 2D WebGL motion | Responsive multi-touch 2D WebGL |
| Graphics Resolution | 4K | 4K |
| HDR Support | 10-bit HDR10, HLG | 10-bit HDR10, HLG |
| IP Streaming | Supports 4K | Supports 4K |
| Ethernet | Gigabit (PoE+ Support) | Gigabit (PoE+ Support) |
| Warranty | 5-Year Limited* | 5-Year Limited* |
Physical & Environmental
-
Dimensions (W x D x H): 205 x 185.9 x 19.2 mm (8.07" x 7.32" x 0.76")
-
Player Weight: 0.59 kg (1.3 lbs)
-
Shipping Weight: 1.3 kg (2.8 lbs)
-
Power Supply: 12V / 3A (Locking Power Supply) or PoE+
-
Operating Temperature: 0°C to 50°C
Supported File Formats
-
Video Containers: .MP4, .MOV, .MKV, .WEBM, .TS, .MPG, .MPEG, .PS, .M2P, .MPV, .AVI
-
Video Codecs: H.265/HEVC, H.264/AVC, AV1, VP9, MPEG-1, MPEG-2, MPEG-4, MJPEG
-
Image Formats: BMP, JPEG, PNG
-
Audio Formats: MP2, MP3, AAC, WAV (eAC3 pass-through)
*Note: The 5-year warranty program applies to Series 5 and Series 6 players purchased after January 1, 2025.
