Description

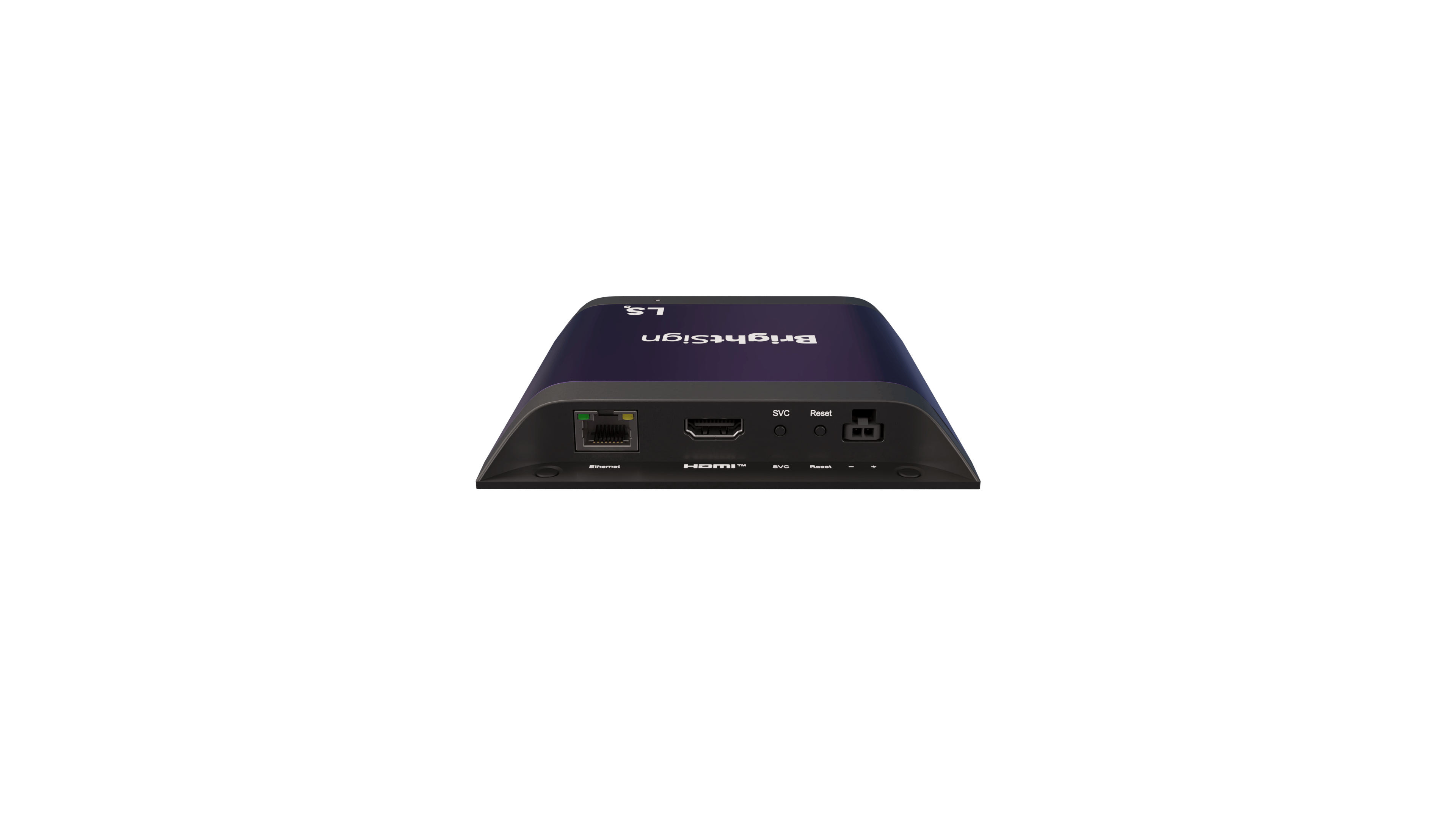

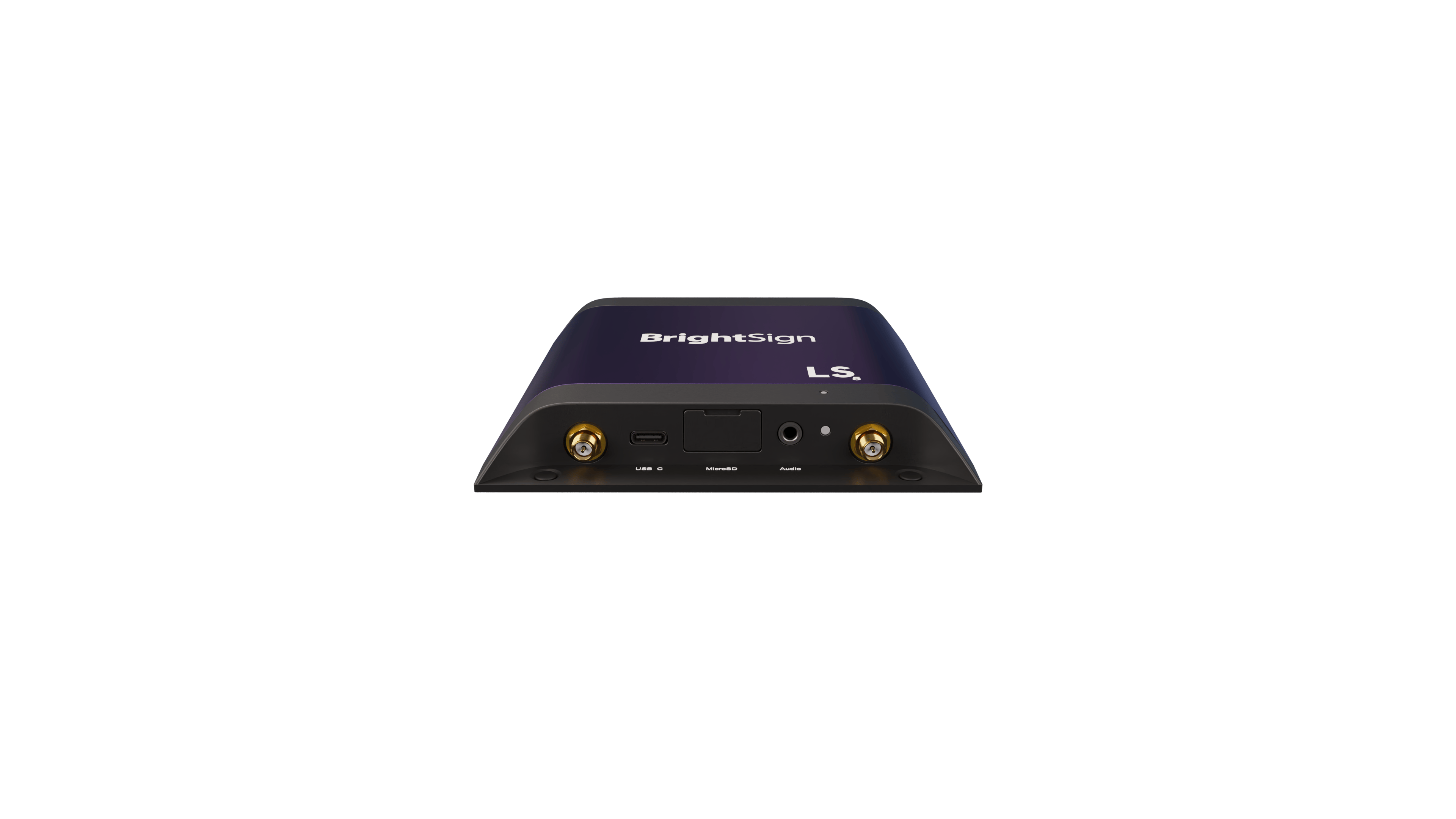

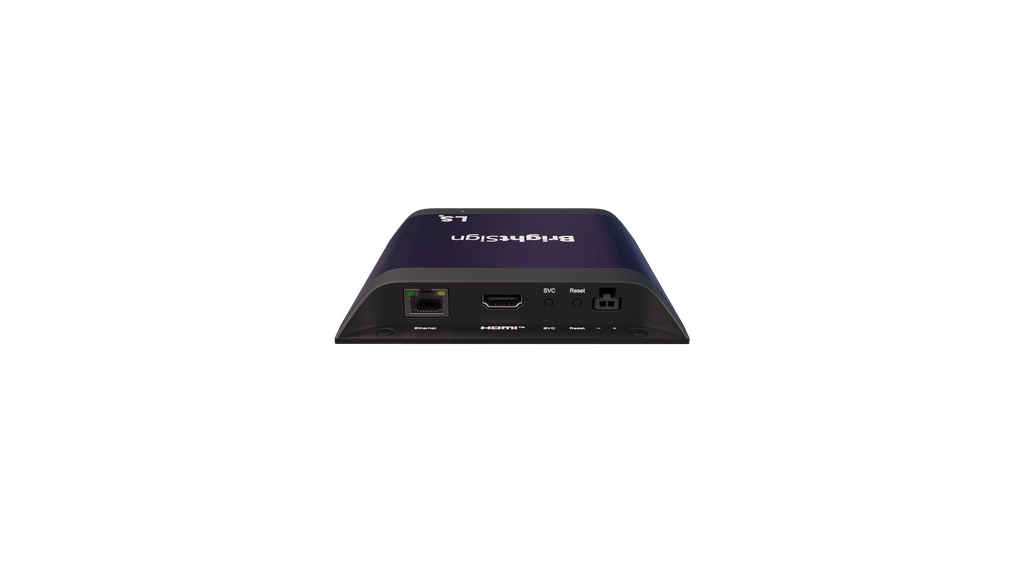

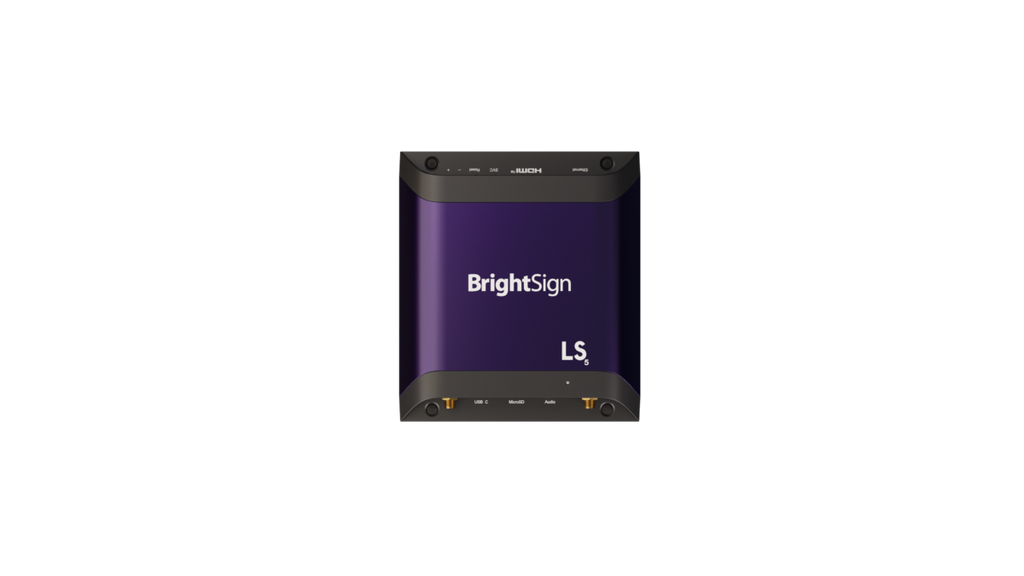

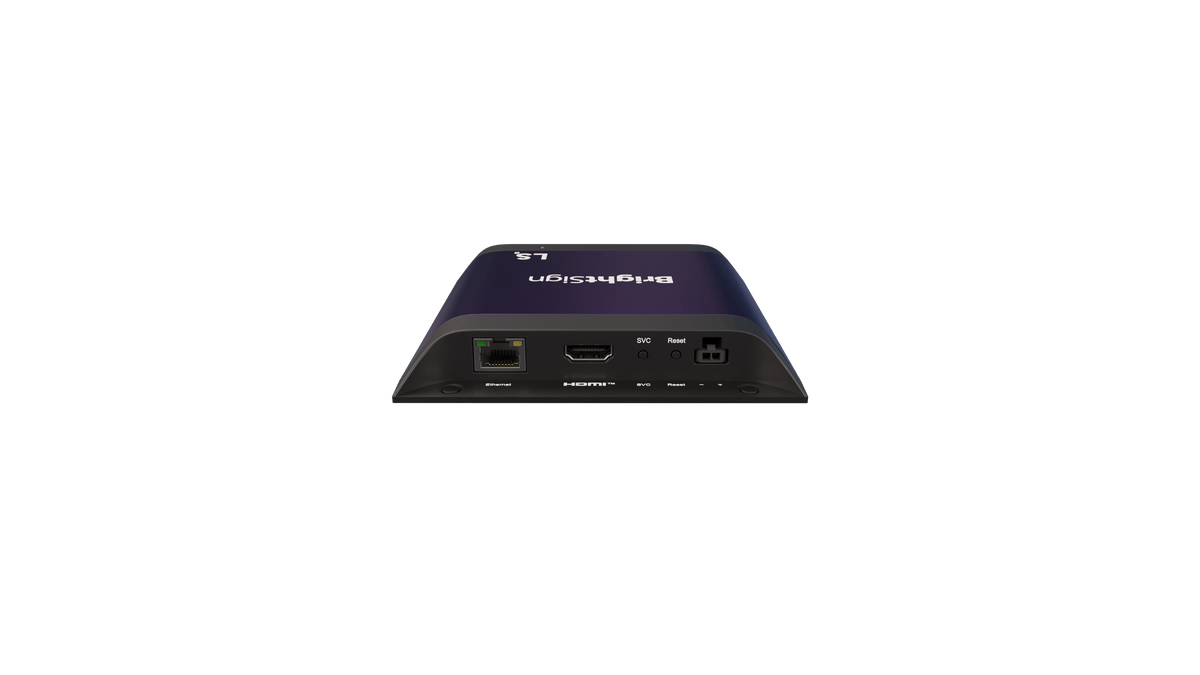

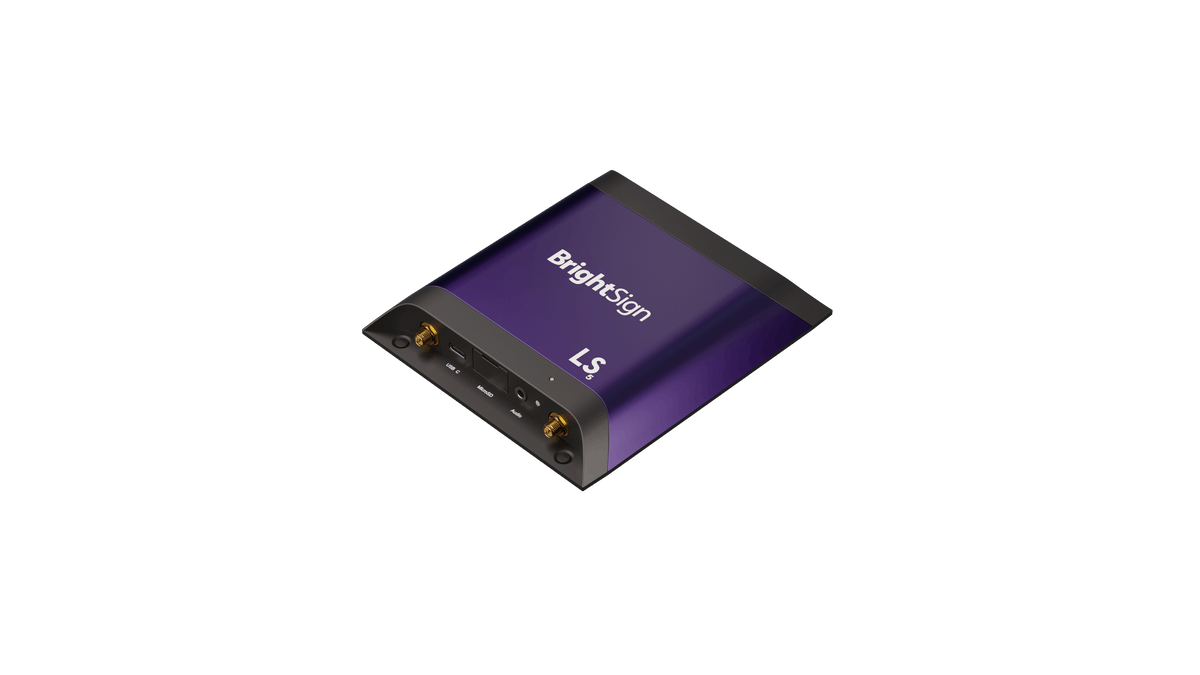

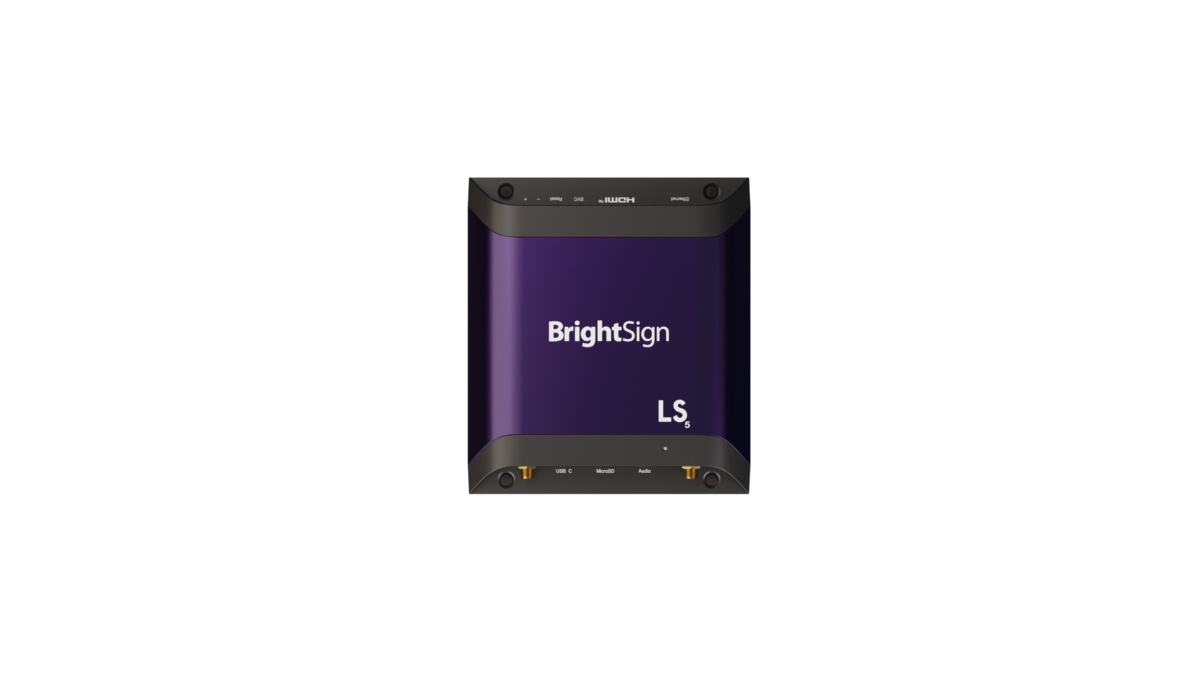

BrightSign LS5 Digital Player
Product Details
The BrightSign LS5 is the "Affordable Performer" in the Series 5 lineup. It is a commercial-grade digital signage player designed for 24/7 operation, offering a much more reliable and secure alternative to consumer-grade sticks or PCs. It is ideal for looping video, simple HTML5 widgets, and basic interactive experiences.
Models Available
-
LS425 (Full HD): Supports 1080p60 video playback.
-
LS445 (4K UHD): Supports 4K60p video playback and 4K images.
Features
-
Signature Reliability: Runs BrightSignOS™, a purpose-built signage operating system that eliminates the "blue screen" risks of Windows or Android.
-
Ultra-Thin Design: Under 1-inch thick, allowing it to be easily hidden behind displays or in tight enclosures.
-
Interactive Peripherals: The USB-C port supports high-speed host mode for touchscreens and other interactive devices.
-
Cloud-Based Management: Includes a free Control Cloud subscription for remote player health monitoring and basic controls.
-
Low Power Draw: Fanless, solid-state design with very low power requirements (~5W).
-
CMS Flexibility: Compatible with over 100 global CMS partners (Signagelive, Appspace, PosterBooking, etc.).
Specifications
| Category | Property | Value |
| Video & HTML | Maximum Resolution | LS425: 1080p60 / LS445: 4K60p |
| HDR Support | HDR10 and HLG | |
| HTML5 Performance | Mainstream (optimized for widgets & 2D animations) | |
| Video Codecs | H.265 (HEVC), H.264 (AVC), MPEG-2, MPEG-1 | |
| Containers | .mp4, .mov, .mkv, .ts, .mpg, .vob, .m2ts | |
| Connectivity | HDMI Output | 1x HDMI 2.0a |
| Ethernet | 10/100 Base-T | |
| USB | 1x USB-C (Supports GPIO, Serial, & IR via adapters) | |
| Audio | 3.5mm Analog & SPDIF Digital Stereo | |
| Networking | Optional M.2 Wi-Fi/Bluetooth Module (WD-105) | |
| Hardware | Storage | External MicroSD slot (protected by tool-less cover) |
| Real Time Clock | Yes (14-day life via supercapacitor) | |
| Indicators | Status LED, Reset, and Service Buttons | |
| Power | 12V / 1.5A (Locking Power Connector) | |
| Physical | Dimensions | 4.98" x 5.58" x 0.76" (126.6 x 141.84 x 19.41 mm) |
| Weight | 6.3 oz (0.18 kg) | |
| Mounting | Built-in Wall Mounting Brackets |
Typical Applications
-
Retail: Digital posters and promotional looping videos.
-
Restaurants: Menu boards with scheduled price and item updates.
-
Education: Campus notification boards and hallway displays.
-
Healthcare: Waiting room information screens and wayfinding.
Accessories (Sold Separately)
-
WD-105: Dual Antenna Wireless/Bluetooth Module.
-
GP800-C: USB-C to GPIO 12-pin Cable Kit.
-
CBL-USBC: USB-C to USB-A and 3.5mm Serial adapter cable.
-
MicroSD Cards: Class 10 cards available in various capacities.
Warranty: 1-Year Limited Parts & Labor (Optional 5-year warranty packages available).
