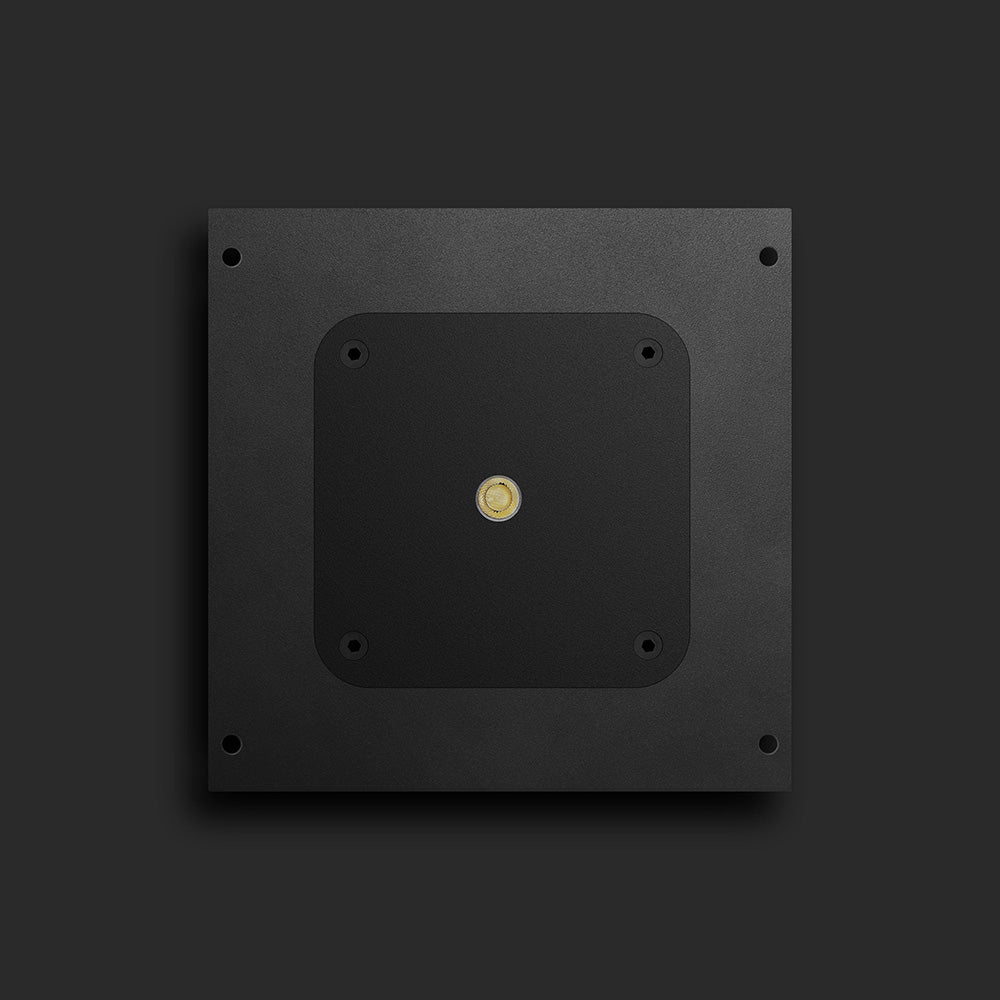

Apure Minus One 3/8" LED Downlight 2700k 40 Degree Flood AM11F2790A MLV Dim
Product Details
The MINUS ONE downlight brings sophistication to interior spaces with its never-before-seen performance. A
single high performance LED is combined with precision-focusing optics to create an unprecedented light fixture.
The high-tech design features a perfectly round 10 mm (3/8′′) aperture in either a 20 or 40 degree beam spread
and includes various dimming protocols, each fully compatible with all major architectural lighting control systems.
Features
Construction
• Extruded aluminum fixture body
• 50,000 hours LED lifetime
• Approximate fixture weight: 636g (1.41lbs)
• Operating Temperature: 10ºC to 50ºC
Fixture Size
• Visible Aperture: ø10mm (ø3/8”)
• Recess Depth: 19mm (3/4”)
• Heat Sink: 120mm x 120mm (4 - 3/4” x 4 - 3/4”)
Light Output
• High performance Cree LED, available in various color temperatures
• 1000lm source light output, 652lm max delivered light output
• 2-step SDCM ellipse
• Color rendering index (CRI) min. 90
• Integral microprocessor controlled thermal protection
Electrical Specifications
24V DC Constant Voltage Input (Class 2, 12W Power Consumption)
• 96W 24V DC Power Supply Required (powers up to 4 fixtures)
• Magnetic Low Voltage (MLV) Dimming (or) 3-Wire Lutron Hi-Lume dimming protocols
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 150ft from remote transformer
Constant Current 1000mA 12V DC Input (Class 2, 12W Power Consumption)
• Remote 1000mA Constant Current Driver Required
• 0-10V 0.1% Dimming (or) 1-10V/Push/DALI (or) Phase Dimming drivers available
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 82ft from remote transformer
Installation Types
• Drywall installation for new construction and retrofit installations possible with the Universal Drywall Bracket,
available for various drywall thicknesses.
• Custom installations for wood, metal and stone ceilings. Requires shop drawings available per request by Apure.
• The Minus series is not suitable for installation within steam rooms or saunas!
Listings
• UL Listed, CE Conform
• Suitable for dry, damp and wet locations, standard IP43, IP66 (upon request)
• Type IC Rated, Plenum Rated, Airtight Rated
