Description
WAYPOINT7V 12/24VDC @ 6A, NEMA 4/4X, 220V

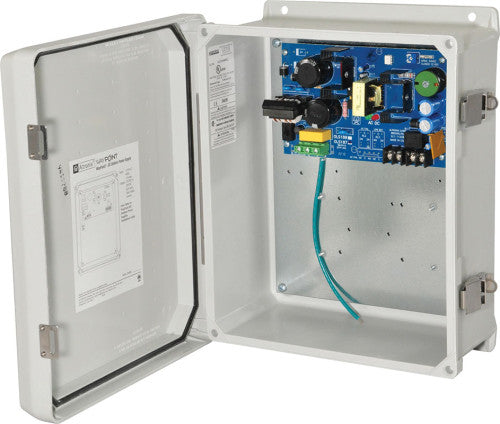

Altronix WayPoint7V DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Input
230VAC, 50/60Hz, 0.95A.
Output
12VDC or 24VDC selectable output.
6A continuous supply current.
Filtered and electronically regulated output.
Thermal overload and short circuit protection.
Features
AC and DC power LED indicators.
Ease of installation saves time and eliminates costly labor.
Includes battery leads.
Battery Charging
Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Temperature
Operating: - 40° C to 60° C (-40° F to 140° F).
Storage: - 40° C to 70° C (-40° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 37 BTU/Hr.
24VDC: 74 BTU/Hr.
System AC input VA requirement: 209VA.
