Description

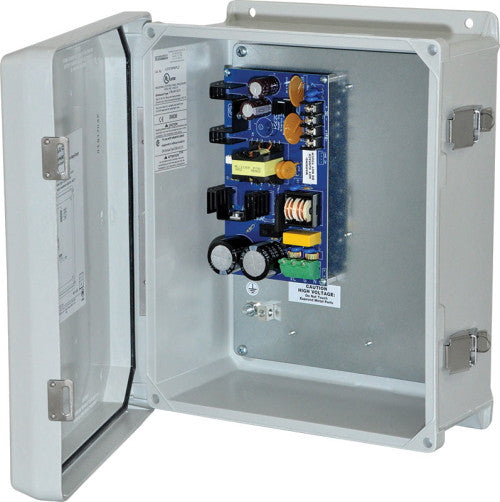

WAYPOINT562 48VDC@2A, BAT CHARGE, NEMA4/4X
Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Input
115VAC, 60 Hz, 2.5A or 230VAC, 50Hz, 1.3A.
Output
56VDC/120W output.
2.2A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Electrical
Operating Ambient Temperature: - 20ºC to 50ºC.
System AC input VA requirement: 300VA.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Separate ventilated enclosure is required
Temperature
Operating Temperature:
60W: -40ºC to 75ºC (-40ºF to 167ºF);
75W: -40ºC to 70ºC (-40ºF to 158ºF);
100W: -40ºC to 55ºC (-40ºF to 131ºF),
120W: -40ºC to 45ºC (-40ºF to 113ºF).
Storage Temperature:
-40ºC to 70ºC (-40ºF to 158ºF).
Relative humidity: 85%, +/- 5%.
BTU/Hr. (approx.):
72 BTU/Hr.
