Description
WAYPOINT30A8DU 24/28AC@12.5/10A,8PTC,UL,OUTDO

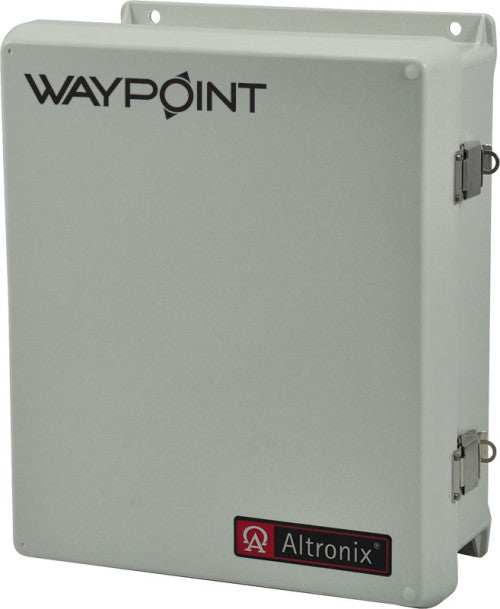

Altronix WayPoint30A8DU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via eight (8) Eight (8) Class 2 Rated PTC protected power-limited outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
Output
Output options:
a. 24VAC @ 12.5A max.
b. 28VAC @ 10A max.
Output PTCs rated @ 2.5A.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating:
24VAC @ 12.5A output: - 40° C to 60° C ( - 40° F to 140° F);
28VAC @ 10A output: - 40° C to 70° C ( - 40° F to 158° F).
Storage: - 40° C to 75° C ( - 40° F to 167° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
Operating Altitude
- 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
