Description

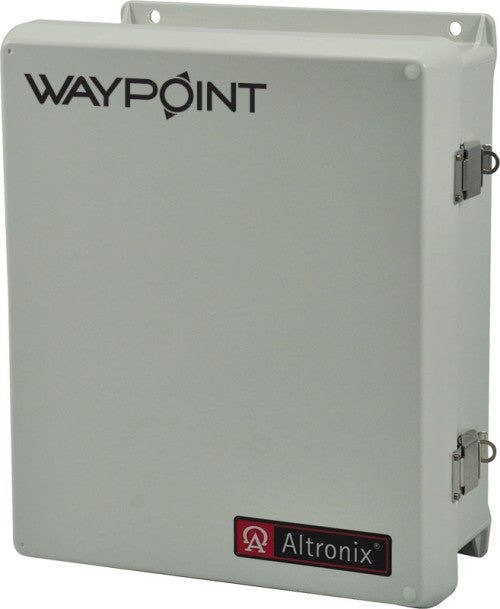

WAYPOINT10A8U 24/28AC@4/3.5A, 8 FUSE, NEMA4X
WayPoint10A8U Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.
Output
Output options:
a. 24VAC @ 4A max.
b. 28VAC @ 3.5A max.
Output fuses rated @ 5A/32V.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating Temperature:
24VAC @ 4A output: - 40° C to 60°C ( - 40° F to 140° F);
28VAC @ 3.5A output: - 40° C to 70°C ( - 40° F to 158° F).
Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
Relative Humidity: 85%, +/- 5%
BTU/Hr. (approx.): 50 BTU/Hr.
System AC input VA requirement: 115VA.
Operating Altitude
Operating Altitude: - 304.8 to 2000m. ( -1000 to 6,561.679 ft.).
