WAYPOINT102 PWR SPLY 12VDC @ 10A,OUT ENCL

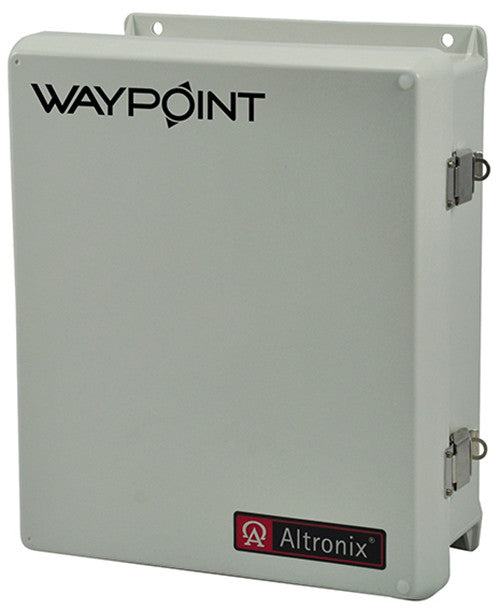

Altronix WayPoint102 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. It also offers a suite of features that includes output disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Fusing: 5A/250V.
Output
Voltage: 12VDC.
Current: 10A continuous max.
Auxiliary: Power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown:
Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators (LED)
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Temperature
Operating - 40° C to 60° C (-40° F to 140° F).
Storage - 40° C to 70° C (-40° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
