Description

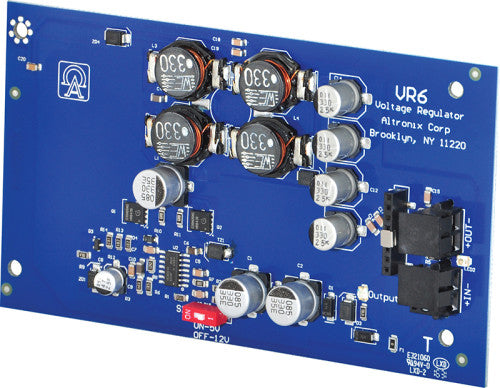

VR6 24VDC IN - 5VDC / 12VDC@6A OUT
Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply current. It reduces the cost of adding an additional power supply to achieve 24VDC and 12VDC or 5VDC simultaneously.
Power Input / Output
Input: 24VDC @ 1.75A - Output: 5VDC @ 6A.
Input: 24VDC @ 3.5A - Output: 12VDC @ 6A.
Output
5VDC or 12VDC regulated output.
Output rating 6A max.
Surge suppression.
LED Indicators
Input and output LEDs.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
5VDC: 15 BTU/Hr.
12VDC: 37 BTU/Hr.
