Description

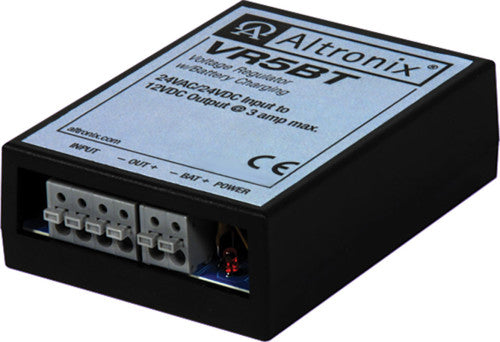

VR5BT 24VAC/VDC-12VDC@3A CHG TERMINL
VR5BT converts a 24VAC or 24VDC input into a regulated 12VDC output.
Input
24VAC or 24VDC input.
Output
12VDC @ 3A max.
Electronically filtered and regulated output.
Built-in overload protection.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
LED Indicators
Power LED.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 18 BTU/Hr.
