Description
VR1T 24VAC/VDC - 12VDC@1A TERMINL

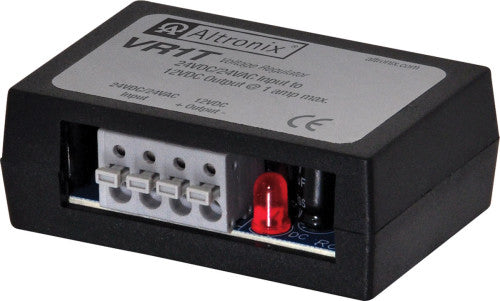

Model VR1T converts a 24VAC or 24VDC input into a regulated 12VDC @ 1A output.
Input
Input 24VAC or 24VDC.
Output
12VDC output.
1A continuous supply current.
Filtered and electronically regulated output.
Built-in overload protection.
Visual Indicators
Power LED indicators.
Features
Quick release terminals(wire gauge 14-20AWG).
Lightweight molded compact insulated housing.
Compact design allows for integration in a wide range of camera housings.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 6 BTU/Hr.
