Description

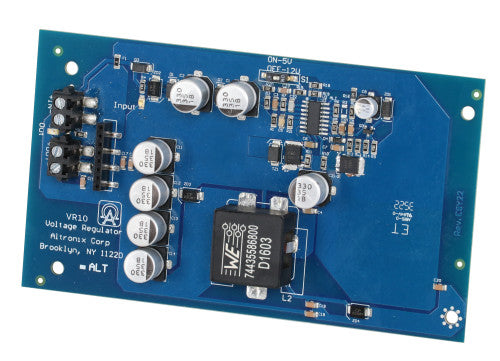

VR10 10A VOLTAGE REGULATOR
Altronix VR10 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC
selectable output at up to 10A supply current. It reduces the cost of adding an additional power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. Unique stackable design via pin connector, saves labor and valuable enclosure space.
Power Input / Output
Input: 24VDC @ 3A - Output: 5VDC @ 10A.
Input: 24VDC @ 6A - Output: 12VDC @ 10A.
Output
5VDC or 12VDC regulated output.
Output rating 10A max. non power-Limited.
Surge suppression.
LED Indicators
Input and output LEDs.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
5VDC: 24 BTU/Hr.
12VDC: 61 BTU/Hr.
