Description
VERTILINE8 8 Out @ 5A, 24/28VAC, 1U Fuse

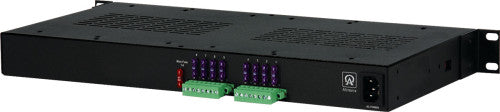

Vertiline8 CCTV Rack Mount Power Supply provides 8 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in sixteen (16) and twenty-four (24) output models with various power ratings.
Input
Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
115VAC 60 Hz, 1.5A.
230VAC 50/60 Hz, 0.8A.
Output
Eight (8) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 5A max. total (0.625A per device, 3A max.).
Eight (8) external blade fuse protected outputs rated @ 3A.
Main fuse rated @ 10A.
Surge suppression.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 61 BTU/Hr.
28VAC: 72 BTU/Hr.
System AC input VA requirement: 115VAC: 172.5VA, 230VAC: 184VA.
