Description

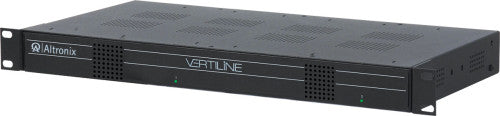

VERTILINE563 56VDC RACK P/S BATTERY/CHARGER
Altronix Vertiline563 is a EIA 19" 1U rack mountable dual independent power supply with optional battery backup that provides 56VDC. It is intended primarily to be used in conjunction with respective Altronix current and future products that requires 56VDC input such as: eBridge4PCRX, eBridge16PCRX & eBridge1PCRX multiport & single port IP/PoE over coax adapters. However, it can also be employed wherever 56VDC level power sources are needed. There are applications, which may require delivering power in a range of 48VDC to
57VDC over CAT5 cable for distances up to 100m. For these applications, transmission at the higher voltage is more efficient, as it reduces cable losses when compared to the lower voltage.
Input
Input 115VAC 60Hz, 4.9A.
Output
56VDC @ 3A each output. (When using battery backup output rating is 56V/2.7A for respective outputs).
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Features
Two (2) AC LED indicators.
IEC 320 - 3-wire grounded line cord (detachable).
Unit can be rack or shelf mounted.
1U rack mount chassis for use in standard EIA 19" rack.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 172 BTU/Hr.
