Description
VERTILINE16I 16 Out 16A, 24/28V,1U Fuse Iso

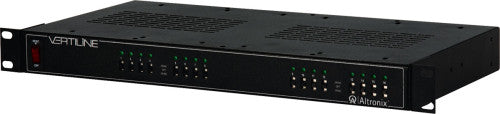

Vertiline16i CCTV Isolated Rack Mount Power Supply provides 16 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Isolated Rack Mount Power Supplies are also available in eight (8) output models.
Input
Selectable 115VAC 60 Hz or 230VAC 50/60 Hz input.
115VAC 60 Hz., 7A.
230VAC 50/60 Hz., 4A.
Output
Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 16A max. total (1A per device, 3A max.).
Individual electronically isolated outputs.
Sixteen (16) external blade fuse protected outputs rated @ 3A.
Surge suppression.
Features
Eight (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 197 BTU/Hr.
28VAC: 229 BTU/Hr.
System AC input VA requirement: 115VAC: 805VA, 230VAC: 920VA.
