Description
VERTILINE166CD 16Out @ 14A, 24/28VAC, 1U PTC

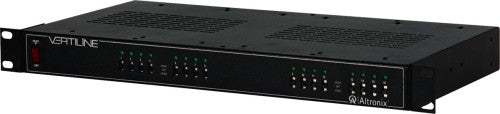

Vertiline166CD CCTV Rack Mount Power Supply provides 16 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight(8) and twenty-four(24) output models with various power ratings.
Input
115VAC 60 Hz., 4A.
Output
Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 14A max. total (0.875A per device, 2.5A max.).
Sixteen (16) PTC protected outputs rated @ 2.5A.
Main fuse rated @ 15A.
Surge suppression.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 172 BTU/Hr.
28VAC: 201 BTU/Hr.
System AC input VA requirement: 460VA.
