Description

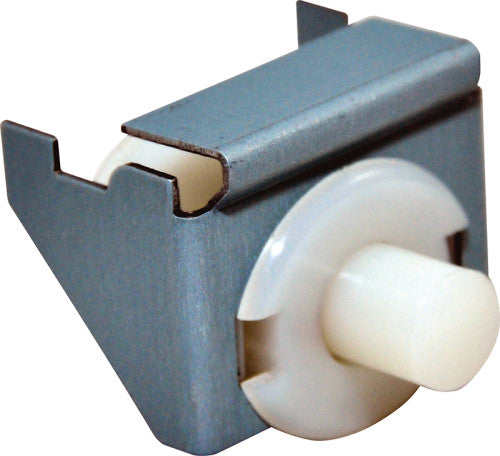

TS112 TAMPER SWITCH W/BRACKET
Altronix TS112 Plunger Tamper Switch functions as a mechanical sensor switch. It can be used as a tamper switch for enclosures or a switch for swinging or sliding doors and windows.
Electrical Rating
28VDC, 100mA.
Physical and Environmental
Dimensions:
Barrel Diameter: 0.675” (17.1mm).
Barrel Length: 0.85” (21.6mm).
Plunger Length: 0.35” (8.9mm).
Overall Length: 1.22” (31mm).
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity
85% +/-5%.
