Description
TROVE2V2 TROVE2 & VERTX BACKPLANE
Trove2V2 accommodates various combinations of HID Aero™ boards with or without Altronix power supplies and accessories for access systems.

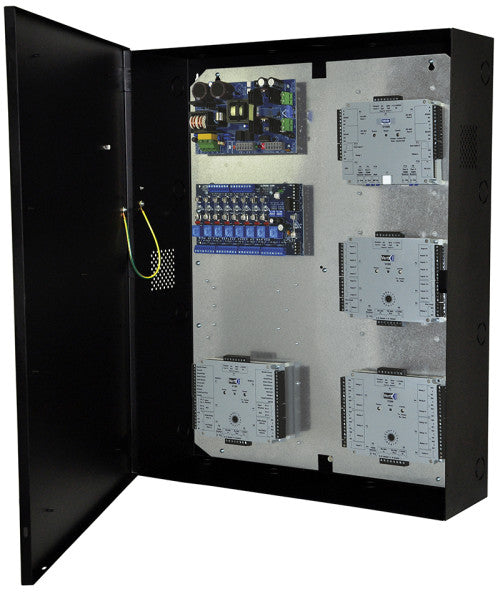

Trove2 enclosure with TV2 Altronix/ HID Aero™ backplane
Backplane accommodates a combination of HID Aero™ controllers with or without Altronix accessories:
- HID Aero™ X100, X200, X300, X1100 (can be mounted with and without case onto TV2 only) and Genetec Synergis Cloud Link
- Altronix Power Supplies
- Altronix Sub-Assemblies
Includes Altronix Trove2 Enclosure and one (1) removable TV2 backplane
Also Available: Door Backplane TMV2 (order separately).
Accommodates the following HID Aero™ controllers:
- HID Aero™ X100, X200, X300, X1100 and Genetec Synergis Cloud Link.
Features:
- Simplifies board layout and wire management.
- 16 AWG galvanized steel.
Trove2 Enclosure
16 AWG powder coated steel enclosure
Simplifies board layout and wire management
Convenient knockout configuration:
- One (1) single knockout 2.415” (2” Conduit).
- Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
