Description

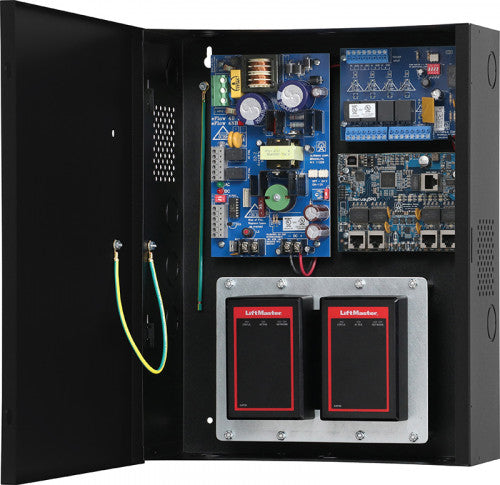

TLM400K1D ALTX/LIFTMAST 4DR/4A/PTC/115V
Altronix TLM400K1D consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) PTC protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow4NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A.
Input Fuse: 5A/250V
Output
Voltage: 24VDC.
Current: 4A continuous.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: Up to 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
ACM4CB Access Power Controller
Input
Voltage: 12VDC or 24VDC from AL600ULXB.
Input PTC: 9A.
Outputs
Voltage: 24VDC.
Four (4) independently controlled PTC outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
NetWay5P 5-Port PoE+ Hardened Switch
Input Power
12 or 24VDC from eFlow4NTB
Power Output
Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection
Uplink Port: Single data port
Ethernet Ports:
Five (5) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
90 BTU/Hr.
