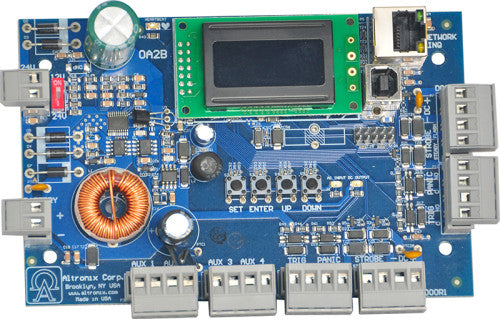

TEMPOA2B OCC ALERT SYS 2-DR, BOARD ONLY
Altronix TempoA2B is designed to alert management when unauthorized loitering occurs in up to (two) secure rooms. TempoA2B has built-in LINQ Technology to remotely monitor, control and report power/diagnostics.
Input Power Options
AC:
24VAC/50VA transformer or 24VDC
Trigger:
Two (2) Door Sensor/Trigger inputs
Two (2) Strobe “Steady” Trigger Inputs
Two (2) Strobe “Flash” Trigger Inputs
Two (2) “Panic/Emergency” Trigger Inputs
Output Options
12VDC/2.5A, 24VDC/1.25A, (30W)
Two (2) Strobe Switched Power Outputs
Four (4) Aux. Power Outputs
Timer
Alphanumeric LCD display simplifies programming
EE Prom memory protects against loss of programming due to power failure
Momentary and/or Latching Events
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Indicators LED
AC Power (Green): Input voltage is present
DC Output (Red): 12/24VDC is on
Trigger: Active
LINQ Technology
Remote network management allows for device reset and monitoring
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics
Event log tracks history
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
61 BTU/Hr.
Mounting hardware is included
