Altronix TANGO8PCB TANGO1B/8PTC 12/24VDCOUT/ENC

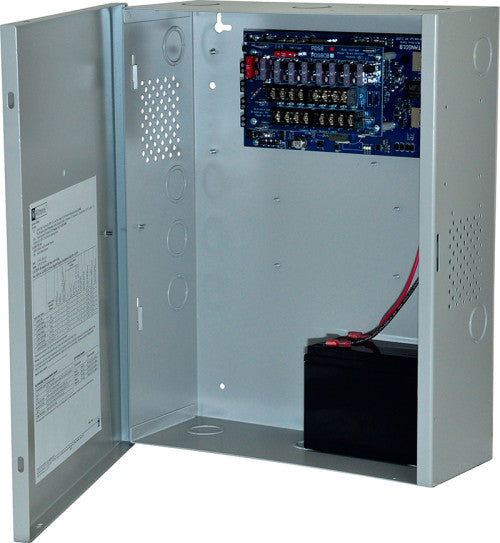

TANGO8PCB TANGO1B/8PTC 12/24VDCOUT/ENC Altronix Tango8PCB PoE Driven Multi-Output Power Supply converts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs up to 75W. It eliminates the need for a high voltage inside the enclosure. Tango8PCB is designed to support a single 12V LiFePO₄ (Lithium Iron Phosphate) battery for 12VDC and 24VDC backup. Ethernet Input 802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W Power Output (when using 802.3bt 90W) 12VDC up to 6.25A (75W), and/or 24VDC up to 3A (75W). Combined output not to exceed 75W. When charging batteries: 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W). Combined output not to exceed 65W. Ethernet Output Pass-through Ethernet Port (data only). Battery Charging 12VDC battery charger for Lithium Iron Phosphate Battery (LiFePO₄ only). Unique technology allows for single battery to backup 12VDC and/or 24VDC systems. (Batteries are sold separately). Supervision Loss of PoE Input. Battery Supervision. Indicators (LED) Input: Indicates input voltage is present. Output: Indicates normal operating condition. PoE Type: PoE Class Indicator Supervision: PoE Fail or BAT Fail. PDS8/PDS8CB Power Distribution Module: Inputs 12VDC and 24VDC from Tango1B, factory wired. Main Fuse Rating 10A/32V. Outputs PTC protected outputs rated @ 2A per output, Class 2 power-limited. Total output 16A max. Do not exceed the individual power supply ratings. Any of the eight (8) power outputs are selectable for 12VDC or 24VDC. Individual outputs may be set to OFF position for servicing. Indicators (LED) Individual voltage LEDs Green: 12VDC Green and Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 54 BTU/Hr.
