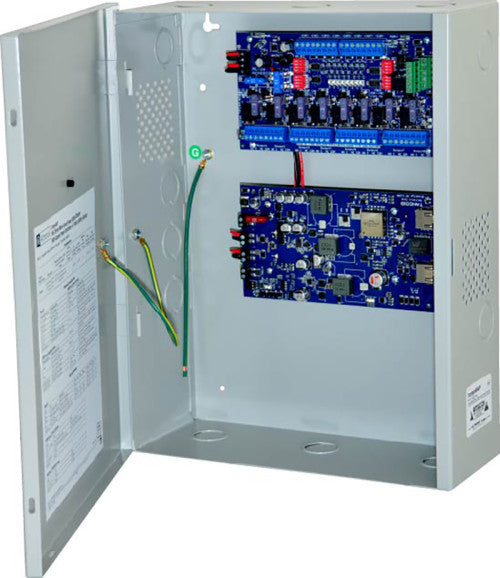

Altronix TANGO8A TANGO1B WITH ACMS8/ENCL

TANGO8A TANGO1B WITH ACMS8/ENCL Altronix Tango8A PoE Driven Power Supply with Access Power Controller converts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs up to 65W. It eliminates the need for a high voltage inside of an enclosure. Tango8A is designed to support a single 12VDC LiFePO₄ (Lithium Iron Phosphate) battery for 12VDC and 24VDC backup. Ethernet Input 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W) Power Output (when using 802.3bt 90W) 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W). Combined output not to exceed 65W. When charging batteries: 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W) Combined output not to exceed 55W. Ethernet Output Pass-through Ethernet Port (data only). Battery Charging 12VDC battery charger for Lithium Iron Phosphate Battery (LiFePO₄ only). Unique technology allows for single battery to backup 12VDC and/or 24VDC systems. (Batteries are sold separately). Supervision Loss of PoE Input. Battery Supervision. Indicators (LED) Input: Indicates input voltage is present. Output: Indicates normal operating condition. PoE Type: PoE Class Indicator Supervision: PoE Fail or BAT Fail. ACMS8/ACMS8CB Access Power Controller: Inputs 12VDC and 24VDC from Tango1B, factory wired. Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized Main Fuse Rating 15/32A. Trigger Inputs Eight (8) individually controlled trigger inputs: a) Normally open (NO) inputs. b) Normally closed (NC) inputs. c) Open collector sink inputs. d) Wet Input (5VDC - 24VDC) with 10K resistor. e) Any combination of the above. Outputs Eight (8) Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max. Output Ratings Fuses are rated 2.5A each, PTCs are rated at 2A. Fire Alarm Disconnect Supervised: Latching or non-latching, individually selectable for any or all of the eight (8) outputs. EOL: 10K Resistor. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Blue LED FACP disconnect is triggered. Individual voltage LEDs Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 54 BTU/Hr.
