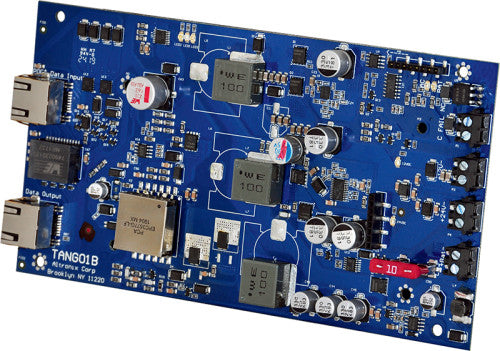

TANGO1B POE DRIVE P/S LIFEPO4 CHARGER
Altronix Tango1B PoE Driven Power Supply/Charger converts an IEEE802.3bt PoE input into a regulated 24VDC and/or 12VDC output up to 72W. Ideal access installations, it eliminates the need for a high voltage power supply inside of an enclosure. The Tango 8-pin connector allows for stacking with compatible Altronix sub-assemblies such as ACMS8(CB), LINQ8ACM(CB) or PDS8(CB) saving valuable enclosure space. Tango1B is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Ethernet Input
802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W.
CAT-6 or higher cable is recommended for optimum performance.
Power Output
(when using 802.3bt 90W):
12VDC up to 6A (72W) and/or 24VDC up to 3A (72W). Combined output not to exceed 72W.
When charging batteries:
12VDC up to 5A (62W) and/or 24VDC up to 2.7A (62W). Combined output not to exceed 62W.
Ethernet Output
Pass-through Ethernet Port (data only).
100/1G
Battery Charging
Battery fuse reading 10A/32V.
Automatically adjusts between Lead Acid and Lithium Iron Phosphate batteries.
Unique technology allows for single battery to backup 12VDC and/or 24VDC systems.
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.
(Batteries are sold separately).
Supervision
Loss of PoE Input.
Battery Supervision.
Visual Indicators
Input indicates input voltage is present.
Battery status indicates battery trouble condition.
PoE Class indicator.
Supervision PoE Fail or BAT Fail.
Additional Features
Short circuit and overload protection.
Physical and Environmental
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity:
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
54 BTU/Hr.
