Description

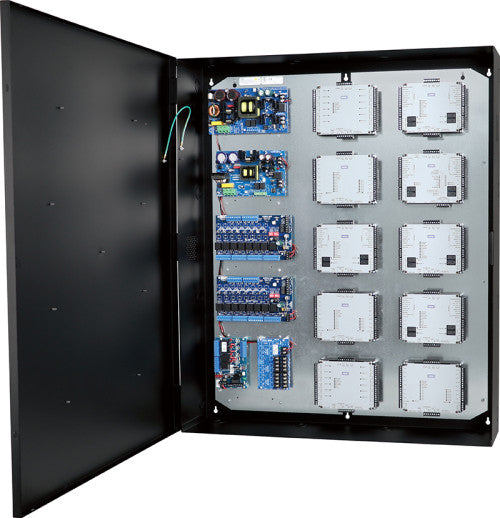

T3VK7520D TROVE3V3/AERO/20DR/PTC/ULX
Altronix T3VK7520D kit consists of Trove3 enclosure, TV3 VertX®/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers, one (1) 4-output PTC access power controller and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker
switches.
This kit also accommodate up to ten (10) HID Aero/VertX® modules for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024ULXB2 Power Supply/Charger - 1 Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V. Output Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. AL1012ULXB Power Supply/Charger - 2 Input Voltage: 115VAC, 60Hz, 2.6A max. Main Fuse: 5A / 250V. Output Voltage: 12VDC. Current: 10A @ 12VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12AH /12VDC (2 within enclosure); 40 AH / 65 AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACM8CB Access Power Controllers Input Voltage: 24VDC from AL1024ULXB2. Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. ACM4CB Access Power Controller Input 24VDC from AL1024ULXB2. Input Fuse: 10A / 32V. Outputs Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Four (4) dry form “C” 5A rated relay outputs. c) Any combination of the above. Four (4) auxiliary power outputs (unswitched). Outputs Ratings PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PD8ULCB Power Distribution Module Input Voltage: 24VDC from AL1024ULXB2. Outputs Voltage: 24VDC. Eight (8) PTC protected outputs. 2.0A per output max. Output PTCs: 2.5A. Indicators LED Green LED: DC Output. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 177 BTU/Hr.
