T3VK7520 TROVE3V3/VERTX 20DR/FUSE/ULX

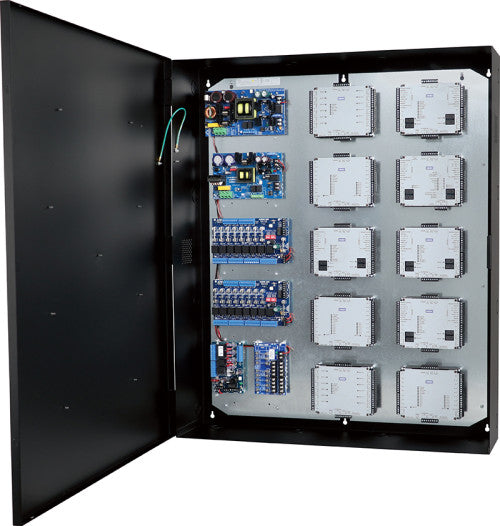

Altronix T3VK7520 kit consists of Trove3 enclosure, TV3 VertX®/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches. This kit also accommodate up to ten (10) HID Aero/VertX® modules for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
AL1024ULXB2 Power Supply/Charger - 1
Input
Voltage: 115VAC, 60Hz, 4.2A max.
Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
AL1012ULXB Power Supply/Charger - 2
Input
Voltage: 115VAC, 60Hz, 2.6A max.
Main Fuse: 5A / 250V.
Output
Voltage: 12VDC.
Current: 10A @ 12VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Both Power Supplies
Battery Charging
Capacity: 12AH /12VDC (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACM8 Access Power Controllers
Input
Voltage: 24VDC from AL1024ULXB2.
Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250VDC.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
ACM4 Access Power Controller
Input
Voltage: 12VDC or 24VDC from AL1024ULXB2.
Input Fuse: 10A / 32V.
Outputs
Voltage: 24VDC.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Four (4) dry form “C” 5A rated relay outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
Fuses: 3A / 32V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
PD8UL Power Distribution Module
Input
Voltage: 12VDC from AL1012ULXB.
Outputs
Voltage: 12VDC.
Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output.
Environmental
Temperature
Operating: 0° C to 50° C (32° F to 122° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
177 BTU/Hr.
