Description

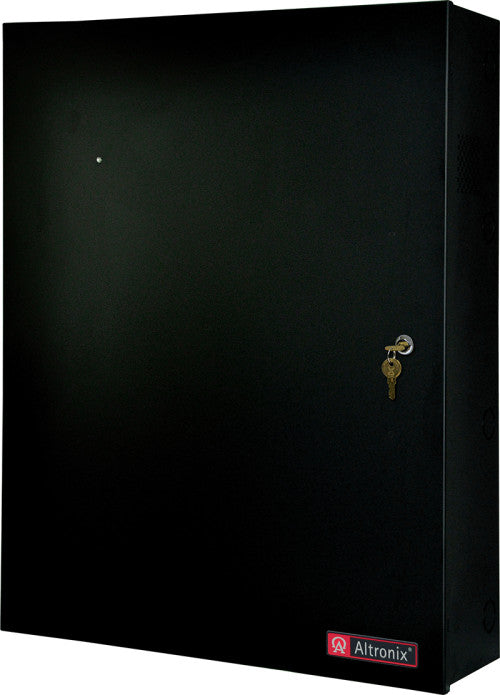

T3SSK75F28D TROVE3SS3, S2 28-DR, PTC
Altronix T3SSK75F28D consists of a high-capacity enclosure with removable backplane, providing 12VDC @ 24VDC at 20A total for up to twenty-eight (28) locking devices or accessories. This unit easily combines Altronix power/accessories with various combinations of S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.
eFlow104NB Power Supply/Charger - 1
Input
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.3A / 250V.
Output
Voltage: 24VDC @ 10A total.
Auxiliary: One (1) Aux outputs rated 1A (unswitched) each.
Protection: Overvoltage protection. Filtered and regulated.
eFlow102NB Power Supply/Charger - 2
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Main Fuse: 5A / 250V.
Output
Voltage: 12VDC @ 10A.
Auxiliary: One (1) Aux outputs rated 1A (unswitched) each.
Protection: Overvoltage protection. Filtered and regulated.
Both Power Supplies
Battery Charging:
Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Three (3) ACM8CB Access Power Controllers
Input
Voltage: 24VDC from eFlow104NB.
Input Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
ACM4CB Access Power Controller
Input
Voltage: 24VDC from eFlow104NB
Input Fuse: 10A/32V.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators LED
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Two (2) PD16WCB Power Distribution Modules
Input
Voltage: 12VDC from eFlow102NB.
Outputs
Voltage: 12VDC.
Output PTCs: 2.5A.
Indicators LED
Green LED: DC Output.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
289 BTU/Hr.
