Description
T3SK777F24S TROVE3SH3/24DR/EFLOW/FUSE

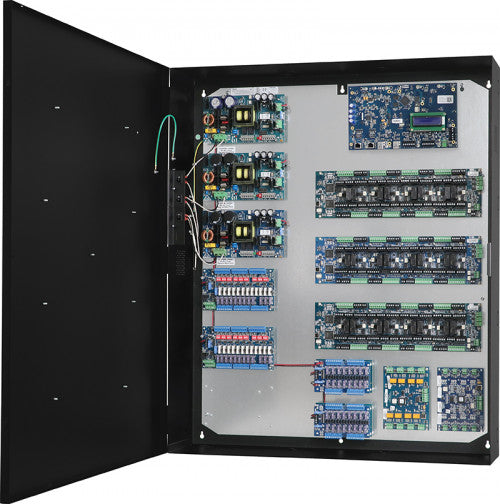

Altronix T3SK777F24S kit consists of Trove3 enclosure and TSH3 Software House/Altronix
backplane with three (3) 24VDC @ 10A power supply/chargers, two (2) twelve (12) fuse protected dual output access control modules, two (2) 12VDC 6A voltage regulators and two (2) sixteen (16) fuse protected dual output power distribution modules. This kit also accommodates various combinations of Software House boards for up to twenty-four (24)
doors in a single enclosure. Trove simplifies board layout and wire management, reduces
installation time and labor costs.
Three (3) eFlow104NB Power Supply/Chargers
Input
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC.
Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Two (2) ACMS12 Dual Input Access Power Controllers
Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC or 24VDC individually selectable.
Twelve (12) selectable 12VDC - 24VDC independently controlled outputs or twelve (12) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Any of the twelve (12) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC.
Red: 24VDC.
Two (2) VR6 Voltage Regulators
Input
Voltage: 24VDC from eFlow104NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) PDS16 Dual Input Power Distribution Modules
Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED)
DC Output: Sixteen (16) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
327 BTU/Hr.
