Description
T3SK77724SDV TROVE3SH3/24DR/ULX/PTC/220V

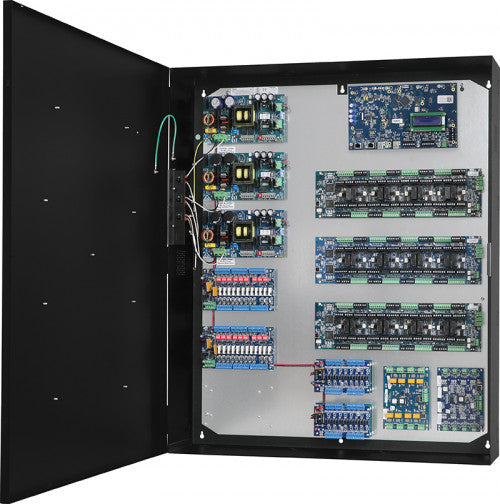

Altronix T3SK77724SDV kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with three (3) 24VDC @ 10A power supply/chargers, two (2) twelve (12) PTC protected dual output access control modules, two (2) 12VDC 6A voltage regulators and two (2) sixteen (16) PTC protected dual output power distribution modules. This kit also accommodates various combinations of Software House boards for up to twenty-four (24)
doors in a single enclosure. Trove simplifies board layout and wire management, reduces
installation time and labor costs.
Three (3) AL1024XB2V Power Supply/Chargers
Input
Voltage: 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A
Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 220VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS12CB Dual Input Access Power Controllers
Input
Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
Input PTCs: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Twelve (12) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Two (2) VR6 Voltage Regulators
Input
Voltage: 24VDC from AL1024XB2V.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) PDS16CB Dual Input Power Distribution Modules
Input
Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
Input PTCs: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output PTCs: 2.5A.
Indicators (LED)
DC Output: Sixteen (16) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
327 BTU/Hr.
