T3SK77724S TROVE3SH3/SHouse 24DR/ULX

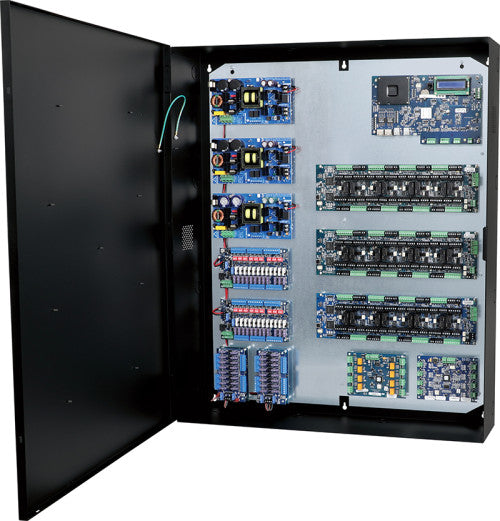

Altronix T3SK77724S kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with three (3) 24VDC @ 10A power supply/chargers, two (2) twelve (12) fuse protected dual output access control modules, two (2) 12VDC 6A voltage regulators and two (2) sixteen (16) fuse protected dual output power distribution modules.
This kit also accommodates various combinations of Software House boards for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Three (3) AL1024ULXB2 Power Supply/Chargers Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V. Output Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH /12VDC (4 within enclosure), 40 AH / 65 AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACMS12 Dual Input Access Power Controllers Input Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input Fuse: 15A / 32V. Outputs Voltage: 12VDC and/or 24VDC. Twelve (12) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Outputs Ratings Fuses: 3A/32V. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Two (2) VR6 Voltage Regulators Input Voltage: 24VDC from AL1024ULXB2. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. Two (2) PDS16 Dual Input Power Distribution Modules Input Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input Fuse: 15A / 32V. Outputs Voltage: 12VDC and/or 24VDC. Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators (LED) DC Output: Sixteen (16) individual output LEDs. Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 327 BTU/Hr.
