Description
T3SK75F16 TROVE3SH3, SOFTWAREHOUSE 16-DR

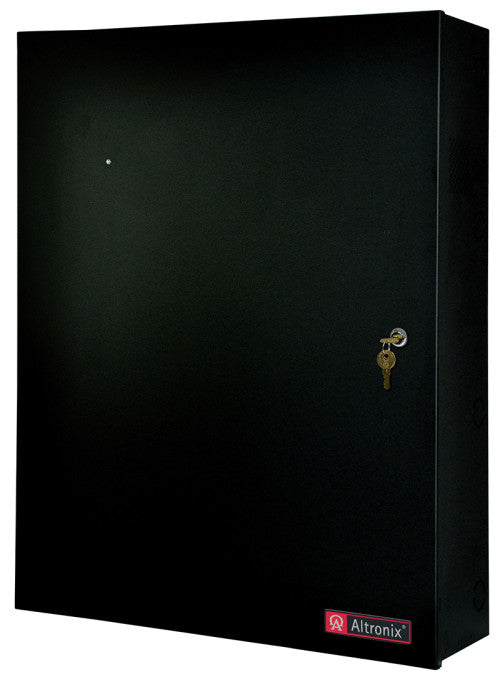

Altronix T3SK75F16 kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, two eight (8) fuse protected output access control modules and eight (8) fuse protected output power distribution module.
This kit also accommodates various combinations of Software House boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. eFlow102NB Power Supply/Charger - 2 Input Voltage: 120VAC, 60Hz, 3.5A max. Main Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACM8 Access Power Controllers Input Voltage: 24VDC from eFlow104NB. Input Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A/250V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PD8UL Power Distribution Module Input Voltage: 12VDC from eFlow102NB. Outputs Voltage: 12VDC. Fuses: 3.5A/250V. Indicators LED Green LED: DC Output. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 217 BTU/Hr.
