Altronix T3SH777XK1Q T3SWK777F24Q/PWX/KIT1

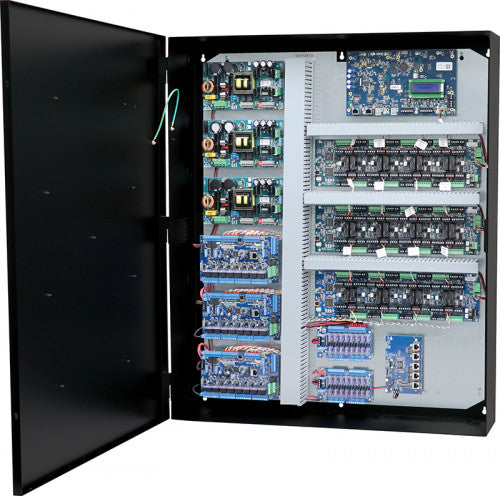

T3SH777XK1Q T3SWK777F24Q/PWX/KIT1 Altronix T3SH777XK1Q is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Software House hardware. This unit provides ample power and dual voltage outputs to support Software House platform controllers and locking devices. The T3SH777XK1Q accommodates up to one (1) iStar Ultra GCM/GCM G2 and three (3) iStar Ultra ACM. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. Three (3) eFlow104NB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 13.5A max. Input Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure. Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: 24VDC is present. Battery: Discharged or not connected. Three (3) LINQ8ACM Networked Access Power Controllers Input Voltage: 24VDC from eFlow104NB and 12VDC from VR6 Input Fuses: 15A/32V Outputs Fuse protected outputs Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Output Fuses: 3A/32V Programming Features: Eight (8) Programmable Outputs: - Fail-safe, fail-secure or auxiliary outputs - Input controlled or manually controlled through software - High (over) and low (under) voltage and current monitoring by output - Multiple outputs may be programmed to be triggered by a single input - Battery back-up by output Eight (8) Programmable Trigger Inputs: - Normally open (NO), Normally closed (NC) or Open collector sink inputs - Wet Input (5VDC - 24VDC) with 10k resistor - Any combination of the above Other Programmable Trigger Inputs: - Monitor power supply(ies) input for voltage and current limits (high/low) - Input and output current calibration, Programmable timer events - Programmable user levels, Enable or disable alerts by type - Programmable alert reporting delay Indicators (LED) Green AC LED: indicates AC trouble condition Green BAT LED: indicates battery trouble condition Green FACP LED: indicates FACP disconnect is triggered Flashing Blue Heartbeat LED: indicates network connection Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red) Three (3) VR6 Voltage Regulators Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. Two (2) PDS16 Dual Input Power Distribution Modules Input Voltage: 24VDC from eFlow104NB and 12VDC from VR6. Input Fuse: 15A / 32V. Outputs Voltage: 12VDC and/or 24VDC. Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators (LED) DC Output: Sixteen (16) individual output LEDs. Green: 12VDC Red: 24VDC. NetWay5B 5-Port Hardened Switch Input 24VDC, current draw: 150mA Ethernet Ports: Five (5) 10/100/1000 Mbps data ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5 or better structured cable Distance: up to 100m Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 289 BTU/Hr.
