Description
T3SH75XK1DQ T3SHK75F16DQ/PWX/KIT1

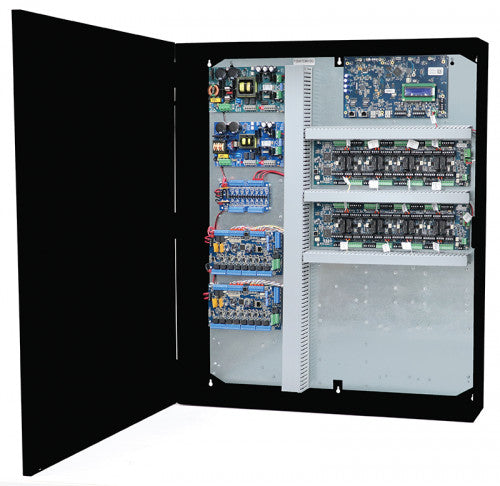

Altronix T3SH75XK1DQ is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Software House hardware. This unit provides ample power and dual voltage outputs to support Software House platform controllers and locking devices. The T3SH75XK1DQ accommodates up to one (1) iStar Ultra GCM/GCM G2 Controller and two (2) iStar Ultra ACM. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
eFlow104NB Power Supply/Charger - 1
Input
Voltage: 120VAC, 60Hz, 4.5A.
Input Fuse: 6.5A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
eFlow102NB Power Supply/Charger - 2
Input
Voltage: 120VAC, 60Hz, 3.5A.
Input Fuse: 5A / 250V.
Output
Voltage: 12VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
Both Power Supplies
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS16CB Dual Input Power Distribution Module
Input
Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB.
Input PTCs: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTC: 2.5A.
Indicators (LED)
DC Output: Sixteen (16) individual output LEDs.
Green: 12VDC.
Red: 24VDC.
Two (2) LINQ8ACMCB Networked Access Power Controller
Input
Voltage 24VDC from eFlow104NB and 12VDC from eFlow102NB
Input PTC: 9A
Outputs
PTC protected power-limited outputs
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Output PTCs:
2.5A
Programming Features:
Eight (8) Programmable Outputs:
- Fail-safe, fail-secure or auxiliary outputs
- Input controlled or manually controlled through software
- High (over) and low (under) voltage and current monitoring by output
- Multiple outputs may be programmed to be triggered by a single input
- Battery back-up by output
Eight (8) Programmable Trigger Inputs:
- Normally open (NO), Normally closed (NC) or Open collector sink inputs
- Wet Input (5VDC - 24VDC) with 10k resistor
- Any combination of the above
Other Programmable Trigger Inputs:
- Monitor power supply(ies) input for voltage and current limits (high/low)
- Input and output current calibration, Programmable timer events
- Programmable user levels, Enable or disable alerts by type
- Programmable alert reporting delay
Indicators (LED)
Green AC LED: indicates AC trouble condition
Green BAT LED: indicates battery trouble condition
Green FACP LED: indicates FACP disconnect is triggered
Flashing Blue Heartbeat LED: indicates network connection
Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
289 BTU/Hr.
