Altronix T3SH75XK1 T3SHK75F16/PWX/KIT1

AltronixSKU: T3SH75XK1

Price:

Login to see pricing

MSRP:
$4,305.34
Stock:
Call for availability

Description

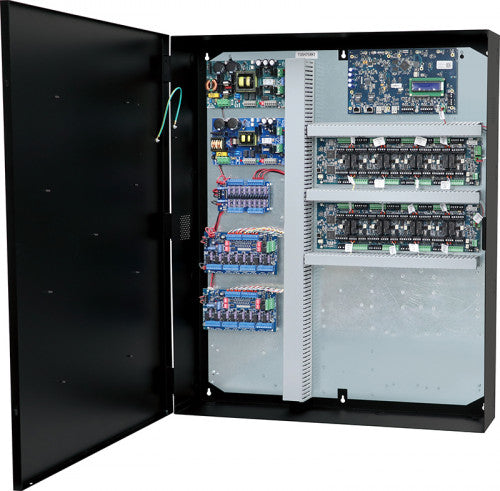

T3SH75XK1 T3SHK75F16/PWX/KIT1 Altronix T3SH75XK1 is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Software House hardware. This unit provides ample power and dual voltage outputs to support Software House platform controllers and locking devices. The T3SH75XK1 accommodates up to one (1) iStar Ultra GCM/GCM G2 Controller and two (2) iStar Ultra ACM. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.5A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. eFlow102NB Power Supply/Charger - 2 Input Voltage: 120VAC, 60Hz, 3.5A. Input Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACMS8 Dual Input Access Power Controllers Input Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB. Input Fuse: 15A / 32V. Outputs Voltage: 12 or 24VDC individually selectable. Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs: b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated. c) Auxiliary power outputs (unswitched). d) Any combination of the above. Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs: Green: 12VDC. Red: 24VDC. PDS16 Dual Input Power Distribution Module Input Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB. Input Fuses: 15A/32V. Outputs Voltage: 12VDC and/or 24VDC. Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V Indicators (LED) DC Output: Sixteen (16) individual output LEDs. Green: 12VDC. Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 289 BTU/Hr.
