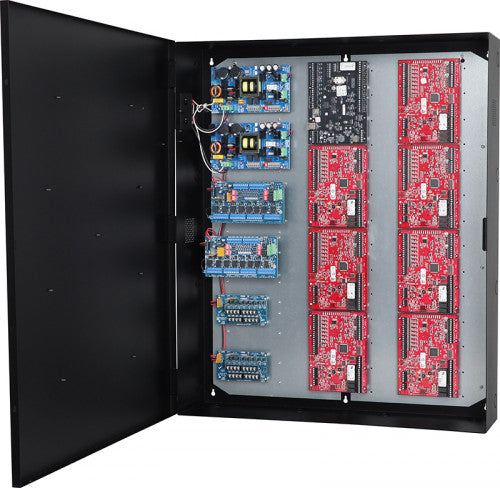

T3MK77F16S T3M/16DR DUAL FUSED/115V
Altronix T3MK77F16S kit consists of Trove3 enclosure and TM3 Altronix & Mercur backplane with two 24VDC @ 10A power supply/chargers, two dual input eight (8) fuse protected output access control modules, two voltage regulators and two dual input eight (8) fuse protected output power distribution modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove
simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Two (2) eFlow104NB Power Supply/Chargers
Input
Voltage: 120VAC, 60Hz, 9A max.
Main Fuse: 6.3A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (4 within enclosure), 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: 24VDC is present
Battery: Discharged or not connected.
Two (2) ACMS8 Dual Input Access Power Controllers
Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC or 24VDC individually selectable.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized)
Green LED: FACP disconnect is triggered
Individual voltage LEDs:
Green: 12VDC
Red: 24VDC
Two (2) VR6 Voltage Regulators
Input
Voltage: 24VDC from eFlow104NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) PDS8 Dual Input Power Distribution Modules
Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
Input Fuse: 10A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC.
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
289 BTU/Hr.
