Description

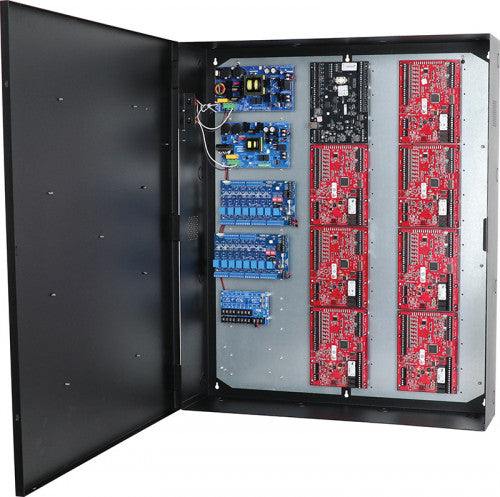

T3MK7516D TROVE3M3/MER/16DR/ULX/PTC
Altronix T3MK7516D kit consists of Trove3 enclosure and TM3 Mercury backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, eight (8) PTC protected output power distribution module and two eight (8) PTC protected output access control modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt AL1024ULXB2 Power Supply/Charger - 1 Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V. Output Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. AL1012ULXB Power Supply/Charger - 2 Input Voltage: 115VAC, 60Hz, 2.6A max. Main Fuse: 5A / 250V. Output Voltage: 12VDC. Current: 10A @ 12VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACM8CB Access Power Controllers Input Voltage: 24VDC from AL1024ULXB2. Main Fuse: 10A / 250V. Outputs Class 2 power-limited auto-resettable outputs. Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PD8ULCB Power Distribution Module Input Voltage: 12VDC from AL1012ULXB. Outputs Class 2 power-limited auto-resettable outputs. Voltage: 12VDC. PTCs: 2.5A. Indicators LED Green LED: DC Output. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 217 BTU/Hr.
