Description
T3MB755K1 24DR ALX/MER/12&24/FUSE/115

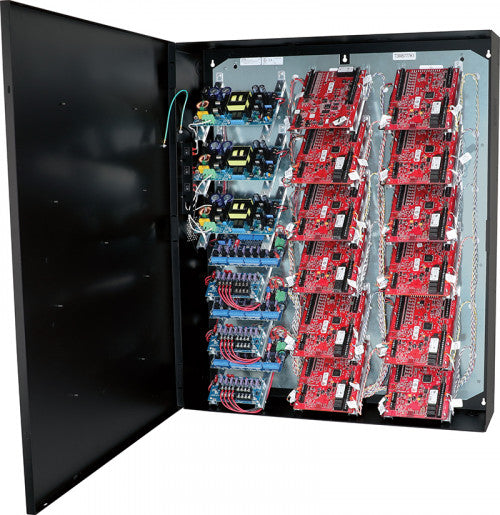

Altronix T3MB755K1 is a 24-door access and power integration kit which includes Altronix
power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3MB755K1 accommodates one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Two (2) eFlow102NB Power Supply/Chargers - 2 and 3 Input Voltage: 120VAC, 60Hz, 3.5A. Input Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Both Power Supplies: (Battery Charging) Capacity: Up to 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. Batteries are sold separately. Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected Three (3) ACMS8 Dual Input Access Power Controllers Input Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB. Input Fuse: 15A / 32V. Outputs Voltage: 12 or 24VDC individually selectable. Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs: b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated. c) Auxiliary power outputs (unswitched). d) Any combination of the above. Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs: Green: 12VDC. Red: 24VDC. Three (3) PDS8 Dual Input Power Distribution Modules Input Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB. Input Fuse: 10A / 32V. Outputs Voltage: 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators (LED's) DC Output: Eight (8) individual output LEDs. Green: 12VDC. Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 433 BTU/Hr.
