Description
T3LMK77F16N ALTX/LM/16DR/12&24V/FUSED/115V

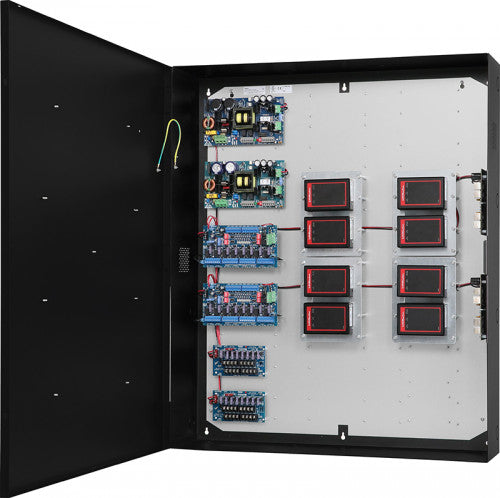

Altronix T3LMK77F16N kit consists of Trove3 enclosure and TM3 Altronix & LiftMaster backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 12VDC voltage regulators, two (2) eight (8) fuse protected output dual voltage power distribution modules, two (2) eight (8) dual voltage fuse protected output access control modules and two (2) 5-Port
Hardened PoE+ Switches. This kit also accommodates up to eight (8) LiftMaster Smart Access 2-Door Controller (CAP2D) for up to sixteen (16) doors in a single enclosure. Four (4) LMBK2 mounting brackets for LiftMaster CAP2D are factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Two (2) eFlow104NB Power Supply/Chargers
Input
Voltage: 120VAC, 60Hz, 4.5A.
Input Fuse: 6.3A/250V
Outputs
Voltage: 24VDC.
Current: 10A continuous.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS8 Dual Input Access Power Controllers
Input
Voltage: 24VDC from eFlow104NTB and 12VDC from VR6.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC.
Red: 24VDC.
Two (2) VR6 Voltage Regulators
Input
Voltage: 24VDC from eFlow104NTB
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) PDS8 Dual Input Power Distribution Modules
Input
Voltage: 24VDC from eFlow104NTB and 12VDC from VR6
Input Fuse: 10A / 32V
Outputs
Voltage: 12VDC and/or 24VDC
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Outputs Ratings
Fuses: 3A/32V
Indicators (LED)
DC Output: Eight (8) individual output LEDs
Green: 12VDC
Red: 24VDC.
Two (2) NetWay5P 5-Port PoE+ Hardened Switches
Input Power
24VDC from eFlow104NTB
Power Output
Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection
Uplink Port: Single data port
Ethernet Ports:
Five (5) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
145 BTU/Hr.
