Description
T3KAK33F16 TROVE3KA3, 16-DR, 12A, FUSE

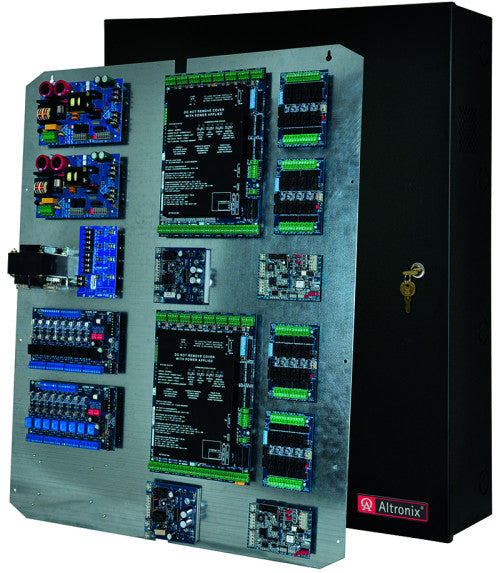

Altronix T3KAK33F16 kit consists of Trove3 enclosure and TKA3 Keyscan/Altronix door backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused power distribution module and one (1) 16VAC transformer.
This kit also accommodate various combinations of Keyscan boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V. Outputs Voltage: Factory set at 24VDC. Current: 6A continuous. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. T16175 Transformer Input Voltage: 115VAC, 50/60Hz, 1.6A. Output Voltage: 16VAC/175VA. 11A supply current. PD4UL Power Distribution Module Input Voltage: 16VAC from T16175. Outputs Voltage: 16VAC. Four (4) fuse protected outputs. 3.5A per output max. Output Fuses: 3.5A/250V. Indicators (LED) Green LED: AC Output. Two (2) ACM8 Access Power Controllers Input Voltage: 24VDC from eFlow6NB. Input Fuse: 10A/250V. Outputs Voltage: 24VDC. Eight (8) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A/250V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 152 BTU/Hr.
