Description

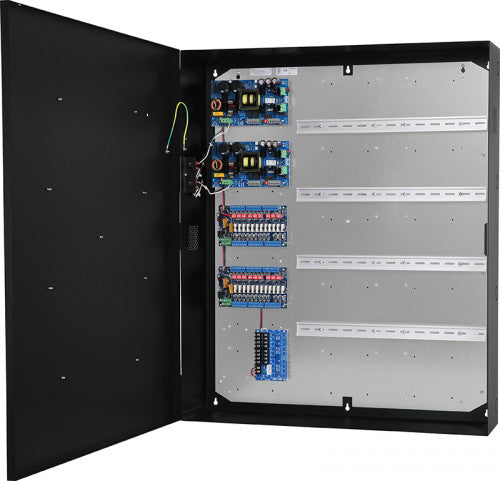

T3DK77F24D ALT/DIN/24DR/PTC/220V
Altronix T2DK77F24 kit consists of Trove3 enclosure and TV3 Altronix/HID/DIN Rail backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) twelve (12) output PTC protected access control modules and one (1) eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to twenty four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Two (2) eFlow104NTB Power Supply/Chargers
Input
Voltage: 120VAC, 60Hz, 4.5A.
Input Fuse: 6.3A/250V
Output
Voltage: 24VDC
Current: 10A continuous
Auxiliary: 1A (unswitched)
Other: Overvoltage protection. Filtered and regulated
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
Indicators LED
Input: 120VAC is present
DC Output: Powered
Battery: Discharged or not connected
PD8ULCB Power Distribution Module
Input
Voltage: 12VDC from eFlow104NTB
Outputs
Voltage: 24VDC
PTCs: 2.5A.
Indicators LED
Green LED: DC Output
Two (2) ACMS12 Dual Input Access Power Controllers
Input
Voltage: 24VDC from eFlow104NTB
Input PTCs: 9A.
Outputs
Voltage: 12VDC and/or 24VDC
Twelve (12) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched)
c) Any combination of the above
Outputs Ratings
PTCs: 2.5A.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized)
Green LED: FACP disconnect is triggered
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F)
Storage: - 20° C to 70° C ( - 4° F to 158° F)
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 263 BTU/Hr.
