Description

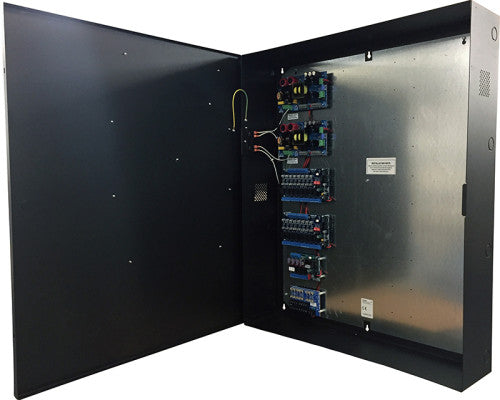

T3CVK77F20 TROVE3CV3, CDVI 20-DR FUSE
Altronix T3CVK77F20 kit consists of Trove3 enclosure, TCV3 CDVI/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches.
This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Two (2) eFlow104NB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACM8 Access Power Controllers Input Voltage: 24VDC from eFlow104NB. Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A / 250V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. ACM4 Access Power Controller Input Voltage: 24VDC from eFlow104NB. Main Fuse: 10A / 32V. Outputs Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Four (4) dry form “C” 5A rated relay outputs. c) Any combination of the above. Four (4) auxiliary power outputs (unswitched). Output Fuses: 3A / 32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PDS8UL Power Distribution Module Input Voltage: 24VDC from eFlow104NB. Outputs Voltage: 24VDC. Eight (8) fuse protected outputs. 3.5A per output max. Output Fuses: 3.5A / 250V. Indicators (LED) Green LED: DC Output. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 263 BTU/Hr.
