Description
T3AXK77F16SV ALT/AXIS/24V@20A/EFL/FUSED/220

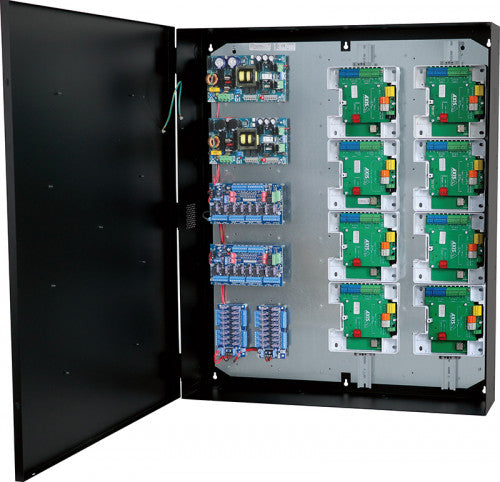

Altronix T3AXK77F16SV kit consists of Trove2 enclosure, TV3 Axis Communications/Altronix backplane with two (2) 24VDC @ 10A power supply/charger, two (2) eight (8) fuse protected dual input/output access control modules, two (2) 12VDC voltage regulators and two (2) sixteen (16) fuse protected dual input/output power distribution modules. This kit also accommodates up to eight (8) A1601 or A1610 or sixteen (16) A1210 modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Two (2) eFlow104NBV Power Supply/Chargers
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A
Main Fuse: 6.5A / 250V.
Outputs
Voltage: 24VDC.
Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 220VAC is present
DC Output: Powered
Two (2) ACMS8 Dual Input Access Power Controllers
Input
Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC.
Red: 24VDC.
Two (2) VR6 Voltage Regulators
Input
Voltage: 24VDC from eFlow104NBV.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) PDS16 Dual Input Power Distribution Modules
Input
Voltage: 12VDC from VR6 and 24VDC from eFlow104NBV.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED)
DC Output: Sixteen (16) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
246 BTU/Hr.
