Description
T2VK78V TROVE2V2/8DR/10A/ULX/FUSE/220

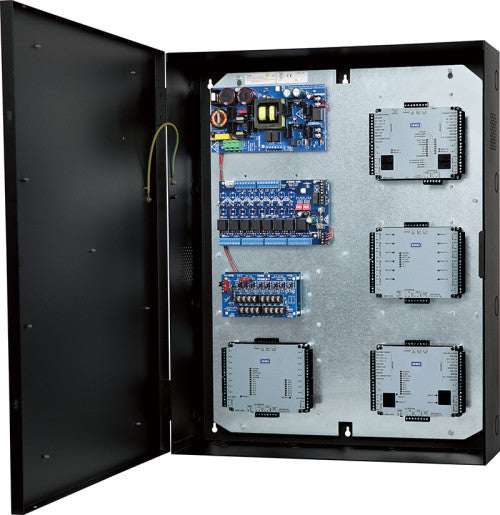

Altronix T2VK78V kit consists of Trove2 enclosure, TV2 VertX®/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates up to four (4) HID VertX® modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time
and labor costs.
AL1024XB2V Power Supply/Charger
Input
Voltage: 220VAC (range 198VAC-256VAC), 50/60Hz, 2.5A.
Fusing: 5A / 250V.
Outputs
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 220VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS8 Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from AL1024XB2V.
Main Fuse: 10A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32V.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator
Input
Voltage: 24VDC from AL1024XB2V.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
ACM8 Access Power Controller
Input
Voltage: 24VDC from AL1024XB2V.
Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity:` 85% +/- 5%.
BTU/Hr. (approx.):
145 BTU/Hr.
