Description
T2SSK75F14 24V@10A&12V@10A 14DR S2 TROVE

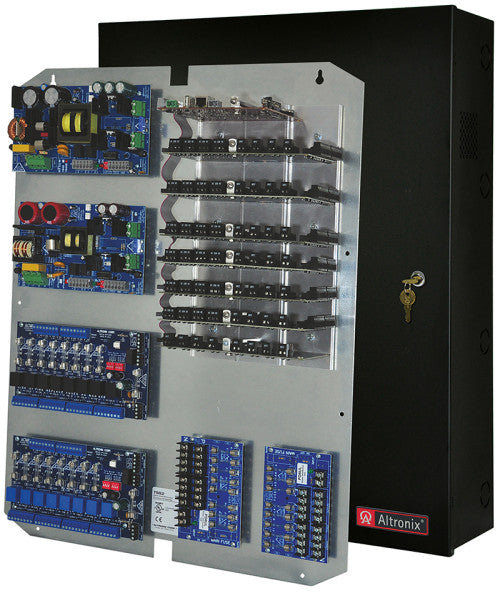

Altronix T2SSK75F14 kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform) / Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, two (2) fused access power controllers and two (2) fused power distribution modules.
This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to fourteen (14) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.5A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. eFlow102NB Power Supply/Charger - 2 Input Voltage: 120VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging: Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators (LED) AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) PD8UL Power Distribution Modules Input Voltage: 24VDC from eFlow104NB or 12VDC from eFlow102NB. Outputs Voltage: 24VDC or 12VDC. Output Fuses: 3.5A/250V. Indicators (LED) Green LED: DC Output. Two (2) ACM8 Access Power Controllers Input Voltage: 24VDC from eFlow104NB or 12VDC from eFlow102NB. Input Fuse: 10A/250V. Outputs Voltage: 24VDC or 12VDC. Eight (8) 24VDC and eight (8) 12VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A/250V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 191 BTU/Hr.
