Altronix T2SSK2DQ 24V@10A&12V@10A/PTC/16D/S2

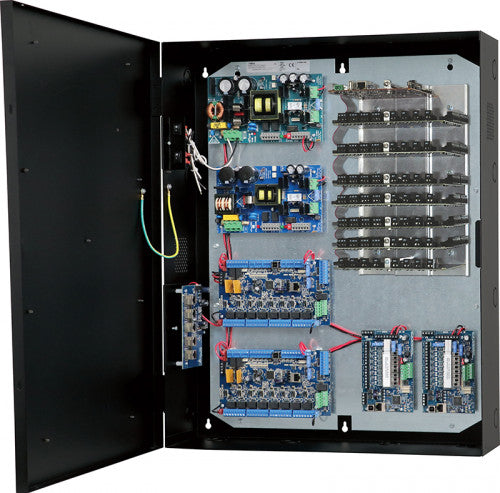

T2SSK2DQ 24V@10A&12V@10A/PTC/16D/S2 Altronix T2SSK2DQ kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform)/ Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, two eight PTC protected dual input/output network/managed access control modules and two eight PTC protected dual input/output network/managed power distribution modules. Also included is a 5-Port hardened switch board. This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. eFlow102NB Power Supply/Charger - 2 Input Voltage: 120VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) LINQ8PDCB Network Power Distribution Modules Input Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB Input PTCs 9A. Outputs PTC protected auto-resettable outputs. Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Output PTCs: 2.5A Status Monitoring Power Supply output voltage and load, Voltage and load of each output FACP trigger and reset status, Unit temperature (Celsius) Power Supply AC and Battery status, Battery health Reporting: Windows Dashboard Alert messages E-mail notifications, Event Log tracks history Indicators (LED) Bat Local: Charging current status FACP: Triggered / Released Input: Input signal Out1 - Out8: Output status Two (2) LINQ8ACMCB Networked Access Power Controllers Input Voltage 24VDC from eFlow104NB and 12VDC from eFlow102NB Input PTC: 9A Outputs PTC protected auto-resettable outputs Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Output PTCs: 2.5A Programming Features: Eight (8) Programmable Outputs: - Fail-safe, fail-secure or auxiliary outputs - Input controlled or manually controlled through software - High (over) and low (under) voltage and current monitoring by output - Multiple outputs may be programmed to be triggered by a single input - Battery back-up by output Eight (8) Programmable Trigger Inputs: - Normally open (NO), Normally closed (NC) or Open collector sink inputs - Wet Input (5VDC - 24VDC) with 10k resistor - Any combination of the above Other Programmable Trigger Inputs: - Monitor power supply(ies) input for voltage and current limits (high/low) - Input and output current calibration, Programmable timer events - Programmable user levels, Enable or disable alerts by type - Programmable alert reporting delay Indicators (LED) Green AC LED: indicates AC trouble condition Green BAT LED: indicates battery trouble condition Green FACP LED: indicates FACP disconnect is triggered Flashing Blue Heartbeat LED: indicates network connection Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red) NetWay5B 5-Port Hardened Switch Input 24VDC, current draw: 150mA Ethernet Ports: Five (5) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 196 BTU/Hr.
