Description
T2RM7F8SDV ALTX/MER RK/8DR/EFLOW/PTC/220

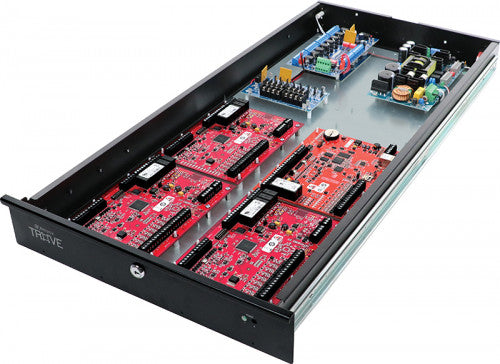

Altronix T2RM7F8SDV rack kit consists of Trove2M2R enclosure/backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input eight (8) PTC protected output access control module, one (1) voltage regulator and one (1) dual input eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow104RLBV Power Supply/Charger Input Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC. Current: 10A continuous. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACMS8CB Dual Input Access Power Controller Input Voltage: 24VDC from eFlow104RLBV and 12VDC from VR6. Input PTC: 9A. Outputs Voltage: 12 or 24VDC individually selectable. Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A Rated. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Individual voltage LEDs: Green: 12VDC. Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104RLBV. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. PDS8CB Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from eFlow104RLBV. Input PTC: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs are rated 2.5V. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
